Product Overview

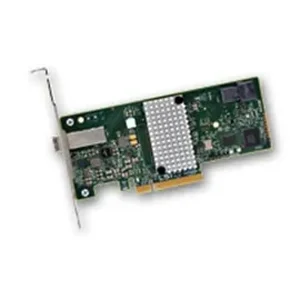

LSI LSI00348Brand NewProduct # LSI00348 LSI00348 Features: Packaged Quantity: 1 Host Interface: PCI Express 3.0 x8 Controller Type: 6Gb/s SAS RAID Supported: No Total Number of SAS Ports: 2 Number of SAS Ports (Internal): 1 Number of SAS Ports (External): 1 SAS Connector Details: 1 SFF-8643 SAS Connector Details: 1 SFF-8644 Form Factor: Plug-in Card Platform Supported: PC Platform Supported: SPARC
Technical Specifications
Solution Provided
High performance for high-end servers connecting to large scale storage enclosures and for internal and external drive connectivity in 1U/2U servers and workstations. In the Box
9300-4i4e HBA and documentation CD IO Controller
LSISAS3008 Fusion MPT 2.5 Port Count
4 port ext / 4 port int Connectors
Mini SAS HD SFF8644 One (x4), Mini SAS HD SFF8643 One (x4) Storage Connectivity Data Transfer Rates
12Gb/s SAS 3.0 Compliant SAS Bandwidth
Half Duplex (x4 wide bus) 4800 MB/s Port Configurations
8 ea, x1 ports (individual drives) 2 ea, x4 wide port Host Bus
x8 lane, PCIe 3.0 PCI Data Burst Transfer Rates
Half Duplex x8, PCIe 3.0, 8000 MB/s Form Factor
Low Profile Physical Dimensions
2.6" x 6.6" Brackets
Full Height and low profile vented Cable Support
Passive Copper, Active Optical (Ext only) LED Management
Reference SFF-8485 (SGPIO) compliant Operating Voltage
+12V +/-8% 3.3V +/-9% PCI Power (Nominal)
14.2W Device Support
1024 Non-RAID devices MTBF
>2,800,000 hours
EMC: Class B-US (CFR 47, P15B) Canada (ICES-00) Japan (V-3/02.04) Europe
