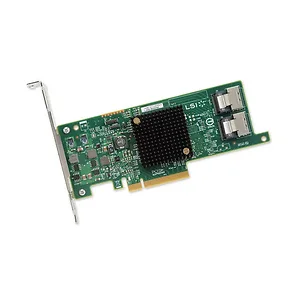

H5-25412-00 - Broadcom LSI Logic Controller Card H5-25412-00 SAS 9207-8i 8Port Internal SAS/SATA 6Gb/s PCI Express Singl

IO Controller
LSISAS2308 / Fusion MPT 2.0 Storage Connectivity, Data Transfer Rates
8 ports 6Gb/s SAS 2.1 compliant SAS Bandwidth
Half Duplex
600 MB/s Per Lane Port Configurations
8 Each x 1 Ports (Individual Drives)
2 Each x 4 Wide Ports Host Bus
x8 Lane, PCI Express 3.0 Compliant PCI Data Burst Transfer Rates
Half Duplex
x8 PCIe 8000 MB/s Form Factor
Low Profile Connectors
Two Mini-SAS internal connectors (SFF8087) Brackets
Full Height and Low Profile Cable Support
Passive Copper Operating Voltage
+12V +/-8% 3.3V +/-8%M PCI Power (Nominal)
9.8 W typical, Airflow 200 LFM Device Support
256 Non-RAID SAS/SATA devices Environmental
Operating: 0 C to 55 C / 5 to 90% Non-Condensing
Storage:-45 C to 105 C / 5 to 90% Non-Condensing MTBF
>2,000,000 Hours Regulatory Certificates
EMC: Class B-US (CFR 47, P15B) Canada (ICES-003) Japan (V-3/02.04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548) Safety: EN60950 RoHS 6 of 6 WEEE OS Support
Microsoft Windows
Linux (SuSE , Red Hat
Solaris
Vmware
FreeBSD Item Dimension (L"xW"xH")
6 x 10.55 x 1.63

Weight
1.00 lb

Warranty Information
3 Years
