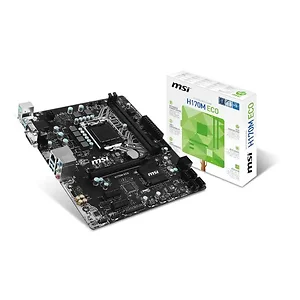

H170M ECO - Msi Motherboard H170M ECO Skylake Core i7/i5/i3 H170 LGA1151 DDR4 32GB SATA PCI Express Micro-ATX Re

Features:

� Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
� Supports DDR4-2133 Memory
� Optimized Power Saving: industrial leading power efficiency design
� ECO Genie: Saving energy with a single push without complicated settings
� ECO Center Pro and Eco Meter: Being full control of and monitor your systems� power usage
� 100% Performance and Compatibility
� DDR4 Boost: Give your DDR4 memory perfect performance
� USB 3.1 Gen1 + SATA 6Gb/s
� VGA Armor: Reinforced Armor slots
� Intel Gigabit LAN with LAN Protect: Stable and reliable
� Click BIOS: Secure and Reliable UEFI BIOS solution
� Audio Boost: Reward your ears with studio grade sound quality
� Military Class 4: Top Quality & Stability
� Guard-Pro: Improved Protection and Power Efficiency
� EZ Debug LED: Easiest way to troubleshoot
� Overvoltage Protection: Prevent Unforeseen Damage
� 4K UHD Support: Ultra-high Definition Visual Experience
� COM/LPT support (pin header): Perfect for Industrial and Commercial use
� Intel SBB Support: Improves Productivity, Management and Security
� WHQL CERTIFIED.WINDOWS 10 READY.

ECO Motherboards:

Industry leading power saving design and server optimizations, together with smart business solutions make the ECO motherboards the perfect solution for your business. Save power, save money and save the planet at the same time.

� ECO Certified Tech Design
� Extreme Power saving
� 100% Performance
� 100% Compatibility
� DDR4 Boost

CPU
Supports 6th Gen Intel Core i7/i5/i3 Processor, and Intel Pentium and Celeron Processors for Socket LGA1151

Chipset
Intel H170 Chipset

Main Memory
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2133 MHz
Dual channel memory architecture

Slots
1 x PCIe 3.0 x16 slots
2 x PCIe 3.0 x1 slots

Onboard Graphics
1 x HDMI ports, support a maximum resolution of 4096x2160 at 24Hz, 2560x1600 at 60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200 at 60Hz
1 x VGA port, supports a maximum resolution of 2048x1536 at 50Hz, 2048x1280 at 60Hz, 1920x1200 at 60Hz

Onboard SATA
Intel H170 Chipset
6 x SATA 6Gb/s ports

USB
Intel H170 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
4 x USB 2.0 (High-speed USB) ports (Available through the internal USB connectors)

Audio
Realtek ALC887 Codec
7.1 Channel High Definition Audio

LAN
1 x Intel I219V Gigabit LAN Controller

Back Panel I/O
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
4 x USB 3.1 Gen1 Ports
1 x DVI-D Port
1 x HDMI Port
1 x VGA Port
1 x LAN (RJ45) Port
3 x Audio Jacks

Internal I/O Connectors
1 x 24-Pin ATX Main Power Connector
1 x 4-Pin ATX 12V Power Connector
6 x SATA 6Gb/s Connectors
2 x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports)
1 x USB 3.1 Gen 1 Connector (Supports additional 2 USB 3.1 Gen1 Ports)
1 x 4-Pin CPU Fan Connector
2 x 4-Pin System Fan Connector
1 x Front Panel Audio Connector
2 x Front Panel Connector1 x TPM Module Connector
1 x Serial Port Connector
1 x Parallel Port Connector
1 x Chassis Intrusion Connector
1 x Clear CMOS Jumper

Mounting
6 Mounting Holes

Form Factor
mATX

Item Dimension (L"xW"xH")
11 x 11 x 3

Weight
4.00 lb

Warranty Information
3 Years
