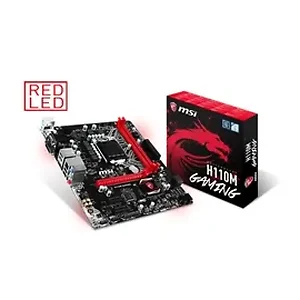

Msi H110M GAMING Motherboard H110M Gaming i3/i5/i7 H110 LGA1151 DDR4 32GB SATA PCI Express micro-ATX Retail

CPU
Supports 6th Gen Intel Core^TM i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 Chipset
Intel H110 Chipset Main Memory
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2133 MHz
Dual channel memory architecture Slots
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots Onboard Graphics
1x HDMI^TM port, supports a maximum resolution of 4096x2160 at 24Hz, 2560x1600 at 60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 at 60Hz
1x VGA port, supports a maximum resolution of 1920x1200 at 60Hz Storage
Intel H110 Chipset
4 x SATA 6Gb/s ports USB
Intel H110 Chipset
6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) Audio
Realtek ALC887 Codec
7.1-Channel High Definition Audio LAN
1 x Intel I219V Gigabit LAN controller Internal I/O Connectors
1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial port connector
1x Parallel port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper Back Panel I/O Ports
1x PS/2 keyboard port
1 x PS/2 mouse port
2 x USB 2.0 ports
4 x USB 3.1 Gen1 ports
1 x DVI-D port
1 x HDMI^TM port
1x VGA port
1 x LAN (RJ45) port
3 x audio jacks Form Factor
mATX Form Factor Mounting
6 mounting holes Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
4.00 lb

Warranty Information
3 YEARS
