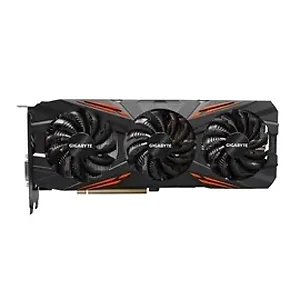

Gigabyte GV-N1070G1 GAMING-8GD R2 Video Card GV-N1070G1 GAMING-8GD Geforce GTX 1070 8GB GDDR5 256B PCI Express DVI-D/HDM

WINDFORCE 3X Cooling System
The WINDFORCE 3X cooling system features 2 pure copper composite heat-pipes, special fin architecture, unique blade fan design, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.

Core
Clock Boost: 1822 MHz/ Base: 1620 MHz in OC Mode
Boost: 1784 MHz/ Base: 1594 MHz in Gaming Mode

Graphics Processing
GeForce GTX 1070

Memory Clock
8008 MHz

Process Technology
16 nm

Memory Size
8 GB

Memory Bus
256 bit

Card Bus
PCI-E 3.0 x 16

Memory Type
GDDR5

DirectX
12

OpenGL
4.5

PCB Form
ATX

Digital max resolution
7680x4320 (requires 2 x DP1.3 connectors)

Analog max resolution
4096x2160

Multi-view
4

Output
Dual-link DVI-D x 1
HDMI-2.0b x 1 (Max Resolution: 4096x2160 at 60 Hz)
Display Port-1.4 x 3 (Max Resolution: 7680x4320 at 60 Hz)

Recommended PSU
500W

Power Connectors
8 pin x 1

Item Dimension (L inchxW inchxH inch)
12 x 5 x 2

Weight
4.10lb

Warranty Information
3 YEARS
