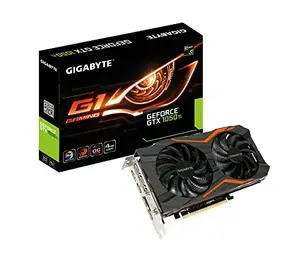

GV-N105TG1 GAMING-4G - Gigabyte Video Card GV-N105TG1 GAMING-4GD GTX1050 Ti GDDR5 4GB 128Bit PCI Express HDMI-3xDisplayP

Gigabyte Video Card GV-N105TG1 GAMING-4GD GTX1050 Ti GDDR5 4GB 128Bit PCI Express HDMI/3xDisplayPort/DVI Retail

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans, 2 pure copper composite heat-pipes, alternate spinning fan design, and heat pipes direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.


Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.


Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.


3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.


Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.


Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.


16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.



Graphics Processing
GeForce GTX 1050 Ti
Core Clock
Boost: 1506 MHz/ Base: 1392 MHz in OC Mode
Boost: 1480 MHz/ Base: 1366 MHz in Gaming
Memory Clock
7008 MHz
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
128 bit
Card Bus
PCI-E 3.0 x 16
Output
Dual-link DVI-D x 1
HDMI-2.0b x 3 (Max Resolution: 4096x2160 at 60 Hz)
Display Port-1.4 x 1 (Max Resolution: 7680x4320 at 60 Hz)
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
300W
Power Connectors
6 pin x 1
Item Dimension (L inchxW inchxH inch)
9 x 5 x 2

Weight
3.00lb

Warranty Information
3 years
