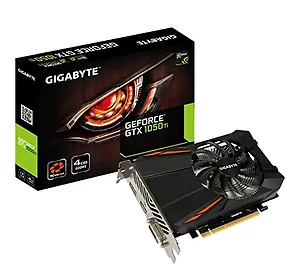

Product Overview
GIGABYTE custom-designed 90mm fan cooler GIGABYTE custom-designed 90 mm fan cooler, with air flow optimized cover and aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise. Cooling System 90mm Unique Blade Fan Design The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans. 3D Active Fan The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Technical Specifications
Graphics Processing
GeForce GTX 1050 Ti Core Clock
Boost: 1430MHz/ Base: 1316MHz in OC Mode
Boost: 1392MHz/ Base: 1290MHz in Gaming Mode Memory Clock
7008 MHz Memory Size
4 GB Memory Type
GDDR5 Memory Bus
128 bit Card Bus
PCI-E 3.0 x 16 Output
Dual-link DVI-D x 1
HDMI-2.0b x 1 (Max Resolution: 4096x2160 at 60 Hz)
Display Port-1.4 x 1 (Max Resolution: 7680x4320 at 60 Hz) Digital max resolution
7680x4320 Multi-view
3 PCB Form
ATX DirectX
12 OpenGL
4.5 Recommended PSU
300W Power Connectors
N/A Item Dimension (L inchxW inchxH inch)
7 x 5 x 2
Weight
1.50 lb
Warranty Information
3 years
