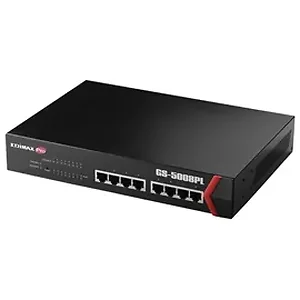

The Edimax GS-5008PL is an advanced 8-port Gigabit PoE+ web smart switch designed to provide efficient power and network management. With features that include PoE support, manageable VLANs, and IGMP snooping, it is perfect for both home and business use.
| Ports | 8 Port RJ-45 10/100/1000Base-T PoE+ ports |
|---|---|
| Transmission Method | Store and forward |
| Buttons | Reset button |
| LED Indicators | Per Port: Link/Act; PoE: Act/Status; Per Unit: Power |
| Power Input | 100-240V AC, 50-60 Hz, internal power supply |
| Total Power Budget | 150W |
| Switching Capacity | 16Gbps |
| Forwarding Rate | 11.9Mpps |
| MAC Address | 4K |
| Buffer Memory | 192KB |
| Jumbo Frames | 9.6KB |
| Filtering/Forwarding Rates | 1000Mbps port - 1,488,000pps; 100Mbps port - 148,800pps; 10Mbps port - 14,880pps |
| Standards | IEEE 802.3af, IEEE 802.3at |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Available Power Budget | 130W (Port 1 to 4 -> 65W, Port 5 to 8 -> 65W) |
| Management | PoE output on/off management |
| VLAN | Up to 8 VLANs and 4096 VLAN IDs; 802.1Q tag-based VLAN; Port-based VLAN |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 1 trunk group |
| IGMP Snooping | IGMP v1/v2/v3 snooping; Block unknown multicast traffic; Multicast groups: 20 |
