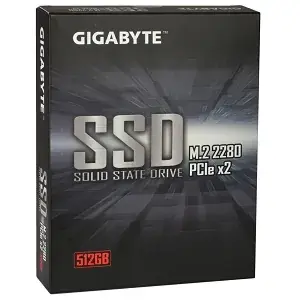

GP-GSM2NE8512GNTD - Gigabyte 512GB PCI Express 3.0 x2 NVMe M.2 2280Solid State Drive (SSD) w/B+M Key

Interface
PCI-Express 3.0 x2, NVMe 1.3 Form Factor
M.2 2280 Total Capacity
512GB NAND
NAND Flash External DDR Cache
N/A Sequential Read speed
Up to 1550 MB/s Sequential Write speed
Up to 850 MB/s Random Read IOPS
up to 120K Random Write IOPS
up to 160K Mean time between failure (MTBF)
1.5M hours Power Consumption (Active)
Average : R : 2200mW, W : 2100mW Power Consumption (Idle) 50mW
Temperature (Operating)
0^oC to 70^oC Temperature (Storage)
-40^oC to 85^oC Note
Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSDs firmware version and system hardware configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
1GB is equal to 1 billion bytes. Actual useable capacity may vary.
3 years or 400 TBW, whichever comes first.
Item Dimension (L"xW"xH")
6 x 5 x 1
Weight
1.00 LB
Warranty Information
3 years
