Condition: New

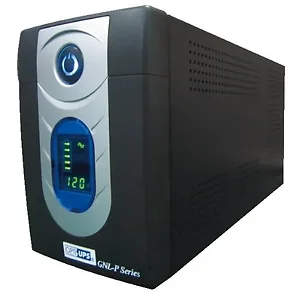

The Opti GNL1500P is a line-interactive UPS power supply with a 1500VA capacity and 900W output. It features simulated sine wave output and automatic voltage regulation (AVR) to maintain stable voltage. The unit includes multiple battery backup and surge-protected outlets, along with overload shutdown and circuit breaker protection.
| Topology | Line Interactive |
|---|---|
| On-Battery Output Waveform | Simulated Sine Wave |
| Maximum Capacity (VA/W) | 1500VA / 900W |
| Nominal Input Voltage | 110 Vac / 120 Vac |
| Nominal Input Frequency | 50 Hz/60 Hz Auto Sensing |
| Input Voltage Range | Rated Voltage +/-25% |
| AC Line-In Plug | NEMA 5-15P |
| Nominal Output Voltage | 100/120 Vac |
| Output Voltage Regulation | Rated Voltage +/-5% (on Battery) |
| Transfer Time (Typical) | 4ms |
| Start on Battery | Yes |
| Auto Restart | Yes |
| Automatic Voltage Regulator (AVR) | AVR increases or decreases output voltage based on input levels |
| Type and Number of Outlets | 4 Battery Backup and 2 Bypass Surge Protected Outlets |
| Data Line Surge Protection | RJ11 and RJ45 |
| Surge Energy Rating | 1050 Joules |
| Overload Protection | UPS shuts down at overload of 10% after 60 secs or at 30% after 3 secs |
| Over Current Protection | Circuit breakers |
| Battery Configuration | 24 V (12V 7.2AH x 2) |
| Typical Battery Time | 60 minutes |
