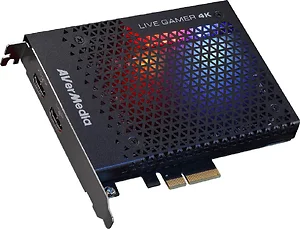

Product Overview
Top of Line Tech: AVerMedia's top capture card, capable of handling any game at ultra-high resolution and framerate and with ultra-low latency. 4Kp60 HDR: High Dynamic Range capture for brighter whites and darker blacks and a wider colour gamut overall, significantly superior to standard 4K, while at 60 fps (Using HDMI 2.0). Maximum Performance: Via Internal PCI Express x4 Gen2 card form factor.
Technical Specifications
Technical Specifications
Interface:PCI-Express Gen 2 x4
Video Input:HDMI 2.0
Video Output (Pass-Through):HDMI 2.0
Audio Input:HDMI 2.0
Audio Output (Pass-Through):HDMI 2.0
Max Pass-Through Resolutions:2160p60 HDR / 1440p144/ 1080p240
Max Record Resolutions:2160p60 HDR / 1440p144 / 1080p240
Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
Record Format:MPEG 4 (H.264+AAC) or (H.265+AAC)
Notes:
H.265 Compression and HDR recording are supported by RECentral
1. LG4K Supports 7.1/5.1 Ch. LPCM surround sound pass-through
2. LG4K does not support viewing/recording/streaming of HDCP protected signals.
System Requirements
Operating sytem: Windows 10 x64
For 4Kp60 HDR or 1080p240 (4Kp60 HDR pass-through supported)
- Intel Core CoreTM i5-6XXX/ AMD Ryzen CoreTM 5 1600 or above
- NVIDIA GeForce GTX 1060 or above
- 8 GB RAM (Dual-channel)
For 1080p60 (4Kp60 HDR pass-through supported)
- Intel CoreTM i5-3330 or above (i7-3770 recommended)
- NVIDIA GeForce GTX 650 / AMD RadeonTM R7 250X or above
