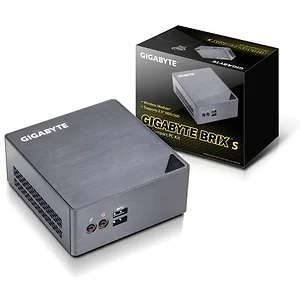

Gigabyte GB-BSI7H-6500 System GB-BSi7H-6500 Core i7-6500U DDR3L 16GB HD Graphics 520 2.5inch HDD/SSD Retail

•  Features Latest Intel® 6th generation Core Processors
•  Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
•  Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
•  1 x M.2 SSD (2280) slot
•  2 x SO-DIMM DDR3L slot (1600MHz / 1866MHz / 2133MHz)
•  Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
•  HDMI plus Mini DisplayPort Outputs (Supports dual displays)
•  Intel® HD Graphics 520
•  4 x USB 3.0
•  Intel Gigabit lan
•  Handset and Microphone jack
•  VESA mounting Bracket (75 x 75mm + 100 x 100mm)

Motherboard Size
105 x 110 mm

CPU
Intel Core i7-6500U
2.5GHz / 3.1GHz

Memory
2 x SO-DIMM DDR3L slots (DDR3 1.35V)
1600MHz / 1866MHz / 2133MHz
Max. 16GB

LAN
Gigabit LAN (Intel i219V)

Audio
Realtek ALC255

Graphics
Intel HD Graphics 520

HDMI Resolution
4096x2160 at 24Hz

Mini DP Resolution
3840x2160 at 60Hz

Expansion Slots
1 x M.2 slot (2280_storage)
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O
2 x USB 3.0
1 x head phone Jack
1 x Mic phone Jack

Rear I/O
1 x HDMI (1.4a)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V
3.42A

VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm

Wifi Card
Intel Dual Band Wireless-AC 3165

Storage
Suppoort 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

Support OS
WIN7 32/64bit
WIN8.1 64bit
WIN10 64bit

Item Dimension (L"xW"xH")
8 x 7 x 5

Weight
3.39 lb

Warranty Information
3 years
