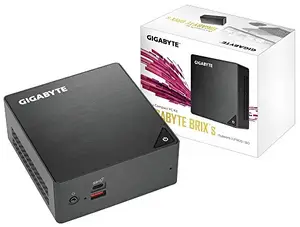

GB-BRI7H-10510 - Gigabyte System GB-BRi7H-8550-BW Brix Core i7-8550U Max64GB DDR4 Window10 Retail

Motherboard Size
105 x 110 mm
CPU
Intel Core^TM Quad Core i7-8550U
4.0GHz / 3.7GHz
Memory
2 x SO-DIMM DDR4 slots
2400MHz
Max. 32GB
LAN
Gigabit LAN (Intel i219V)
Wifi Card
Intel Dual Band Wireless-AC 3168
Graphics
Intel UHD Graphics 620
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0a ws HDCP 2.2
4096 x 2304 at 60Hz
Mini DP Resolution (Max.)
DP1.2a ws HDCP 2.2
4096 x 2304 at 60Hz
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X4 /SATA Support Optane memory
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x USB 3.1 type C
1 x USB3.1
1 x head phone jack with MIC
1 x Dual array Microphone
Rear I/O
1 x HDMI(2.0a)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Storage
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
USB3.1
Asmedia 3142
Power Supply
Input: AC 100-240V
Output: DC 19V
3.42A
VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS
WIN10 64bit
Environment
System Environment Operating Temperature: 0^oC to +35^oC
System Storage Temperature: -20^oC to +60^oC
Item Dimension ( L inch x W inch x H inch)
9 x 7 x 6 Weight
4.00 lb
