Technical Specifications

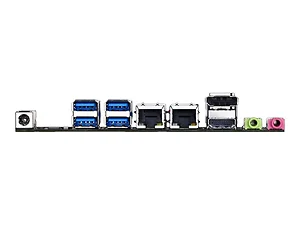

<b>CPU</b><br>Support for Intel Core i7 processor/Intel Core i5 Processor/Intel Core i3 processor/Intel Pentium Processor/ Intel Celeron Processor in the LGA1151 Package<br>L3 Cache varies with CPU <b>Chipset</b><br>Intel H110 Express Chipset <b>Memory</b><br>2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory<br>Dual Channel memory architecture<br>Support for DDR4 2133MHz memory Modules <b>Onboard Graphics</b><br>Integrated Graphics Processor Intel HD Graphics Support<br>1 x DisplayPort Supporting a maximum resolution of 4096x2304 at 60Hz<br>1 x HDMI Port, supporting a maximum resolution of 4096x2160 at 24Hz<br>Maximum shared memory of 512MB <b>Audio</b><br>Realtek ALC887 CODEC<br>High Definition Audio<br>2/4/5.1/7.1 Channel <b>LAN</b><br>2 x Intel GbE LAN chips (10/100/1000 Mbit) <b>Expansion Slots</B><br>1 x PCI Express x4 Slots<br>1 x Full Size Mini PCIe slot (MSATA_MPCIE2)<br>1 x Half Size Mini PCIe Slot (MPCIE1) <b>Storage Interface</b><br>2 x SATA 6Gb/s Connectors<br>1 x mSATA connector (MSATA_PCIE2) <b>USB</b><br>Chipset:<br>- 4 x USB 3.0/2.0 ports on the back panel<br>- 4 x USB 2.0/1.1 ports available through the internal USB headers <b>Internal I/O Connectors</b><br>1 x 4-pin ATX 12V power connector<br>1 x CPU fan header<br>1 x system fan header<br>2 x SATA 6Gb/s connectors<br>1 x MSATA connector (MSATA_MPCIE2)<br>1 x SATA power connector<br>1 x front panel header<br>1 x front panel audio header<br>1 x battery cable header<br>2 x USB 2.0/1.1 headers<br>4 x serial port headers<br>4 x serial port power select jumpers<br>1 x D-Sub header<br>1 x digital microphone header<br>1 x GPIO header<br>1 x LVDS header<br>1 x LVDS drive voltage jumper<br>1 x flat panel display header<br>1 x flat panel display power jumper<br>1 x flat panel display switch header<br>1 x backlight switch header<br>1 x speaker header<br>1 x buzzer header<br>1 x Clear CMOS jumper<br>1 x chassis intrusion header <b>Back Panel Connectors</b><br>1 x DC In power connector<br>1 x HDMI port<br>1 x DisplayPort<br>4 x USB 3.0/2.0 ports<br>2 x RJ-45 ports<br>2 x audio jacks (Line Out, Mic In) <b>I/O Controller</b><br>iTE I/O Controller Chip <b>H/W Monitoring</b><br>System voltage detection<br>CPU/System temperature detection<br>CPU/System fan fail warning<br>CPU/System fan speed detection<br>CPU/System fan speed control <b>BIOs</b><br>2 x 64 Mbit flash<br>Use of licensed AMI UEFI BIOS<br>PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 <b>Unique Features</B><br>Support for Q-Flash<br>Support for Smart TPM<br>Support for at BIOs <b>Bundle Software</b><br>Norton Internet Security (OEM Version) <b>Operating System</b><br>Support Windows 10/8.1 64-Bit<br>Support for Windows 7 32/64-Bit <b>Form Factor</b><br>Mini-ITX <b>Item Dimension (L"xW"xH")</b><br>9 x 8 x 4<br><br><b>Weight</b><br>2.00 lb<br><br><b>Warranty Information</b><br>3 Years
