SKU: AZTEKPQ6MU |  Mfg. Part: GA-Z97X-GAMING G1 WI  | UPC: 818313020734  |
 1 Reviews  |     Share

Gigabyte GA-Z97X-GAMING G1 WI GA-Z97X-GAMING G1 LGA1150/ Intel Z97/ DDR3/ 4-Way CrossFireX & SLI/ SATA3&USB3.0/ A&2GbE/

Special Order
Ships in 1-2 weeks
Condition: New

$221.64  $299.21
 Free Shipping for this Item

Product Overview

Gigabyte GA-Z97X-GAMING G1 WI GA-Z97X-GAMING G1 LGA1150/ Intel Z97/ DDR3/ 4-Way CrossFireX & SLI/ SATA3&USB3.0/ A&2GbE/

Technical Specifications

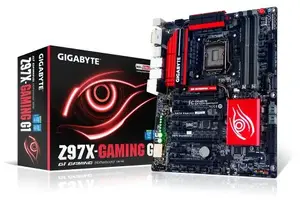

  • Gigabyte GA-Z97X-GAMING G1 Intel Z97 Socket 1150 ATX Motherboard


  • General Features:
  • Supports 4th and 5th Generation Intel Core processors
  • Onboard Creative Sound Core3D quad-core audio processor
  • AMP-UP Audio technology with exclusive Upgradable OP-AMP
  • Audio Noise Guard with LED path lighting
  • Dual DAC-UP USB ports
  • Gold plated display and audio ports
  • High end Nichicon audio capacitors
  • Killer E2200 and Intel gaming networking
  • Extreme gaming 4-way graphics support
  • SATA Express support for 10 Gb/s data transfer
  • Long lifespan Durable Black Solid caps
  • APP Center including EasyTune and Cloud Station utilities
  • GIGABYTE UEFI DualBIOS
  • Operating System: Support for Windows 10/8.1/8/7


  • Special Features:
  • Support for Q-Flash
  • Support for Smart Switch
  • Support for Xpress Install
  • Support for APP Center:

    • @BIOS
    • EasyTune
    • EZ Setup
    • Fast Boot
    • Game Controller
    • ON/OFF Charge
    • Smart TimeLock
    • Smart Recovery 2
    • System Information Viewer
    • USB Blocker


  • Specifications:
  • CPU:

    • Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel
    • L3 cache varies with CPU


  • Chipset:
  • Intel Z97 Express Chipset


  • Memory:
  • Four (4) DDR3 DIMM sockets supporting up to 32 GB of system memory
  • Dual channel memory architecture
  • Support for 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules


  • Onboard Graphics:
  • Integrated Graphics Processor - Intel HD Graphics support:
  • One (1) DVI-I port, supporting a maximum resolution of 1920x1200 @60Hz
  • One (1) HDMI port, supporting a maximum resolution of 4096x2160 @24Hz or 2560x1600 @60Hz
  • One (1) DisplayPort, supporting a maximum resolution of 4096x2160 @24Hz or 3840x2160 @60Hz
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 512MB


  • Audio:
  • Creative Sound Core 3D chip
  • TI Burr Brown OPA2134 operational amplifier
  • Support for Sound Blaster Recon3Di
  • High Definition Audio
  • 2/5.1-channel
  • Support for S/PDIF Out


  • LAN:
  • One (1) Qualcomm Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1)
  • One (1) Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)


  • Expansion Slots:
  • Two (2) PCI Express x16 slots, running at x16 (PCIEX16_1~2)
  • Two (2) PCI Express x16 slots, running at x8 (PCIEX8_1~2)
  • Three (3) PCI Express x1 slots


  • Multi-Graphics Technology:
  • Support for 4-Way/3-Way/2-Way AMD CrossFire/NVIDIA SLI technology


  • Storage Interface:
  • Chipset:

    • One (1) SATA Express connector
    • Six (6) SATA 6Gb/s connectors (SATA3 0~5)
    • Support for RAID 0, RAID 1, RAID 5, and RAID 10

  • Two (2) Marvell 88SE9172 chips:

    • Four (4) SATA 6Gb/s connectors (GSATA3 6~9)
    • Support for RAID 0 and RAID 1


  • USB:
  • Chipset:

    • Four (4) USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • Eight (8) USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

  • Chipset + Renesas uPD720210 USB 3.0 Hub:

    • Four (4) USB 3.0/2.0 ports on the back panel


  • I/O Controller:
  • iTE I/O Controller Chip


  • H/W Monitoring:
  • System voltage detection
  • CPU/System/Chipset temperature detection
  • CPU/CPU OPT/System fan speed detection
  • CPU/System overheating warning
  • CPU/CPU OPT/System fan fail warning
  • CPU/CPU OPT/System fan speed control


  • BIOS:
  • Two (2) 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



  • Internal I/O Connectors:
  • One (1) 24-pin ATX main power connector
  • One (1) 8-pin ATX 12V power connector
  • One (1) PCIe power connector
  • One (1) SATA Express connector
  • Ten (10) SATA 6Gb/s connectors
  • One (1) CPU fan header
  • One (1) water cooling fan header (CPU_OPT)
  • Five (5) system fan headers
  • One (1) front panel header
  • One (1) front panel audio header
  • One (1) USB 3.0/2.0 header
  • Three (3) USB 2.0/1.1 headers
  • One (1) Clear CMOS jumper
  • One (1) power button
  • One (1) reset button
  • One (1) Clear CMOS button
  • Two (2) audio gain control switches
  • Eight (8) onboard voltage measurement points
  • Two (2) BIOS switches


  • Back Panel Connectors:
  • One (1) PS/2 keyboard/mouse port
  • One (1) optical S/PDIF Out connector
  • One (1) DVI-I port
  • One (1) DisplayPort
  • One (1) HDMI port
  • Two (2) USB 2.0/1.1 ports
  • Six (6) USB 3.0/2.0 ports
  • Two (2) RJ-45 ports
  • Five (5) audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)


  • Unit Dimensions:
  • ATX Form Factor; 30.5cm x 24.4cm

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • GIGABYTE
  • GA-Z97X-GAMING G1 WI
  • 818313020734
  • New
  • 5.4 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Gigabyte • Part #: GA-Z97X-GAMING G1 WI • UPC: 818313020734 • Category: Motherboards

Gigabyte GA-Z97X-GAMING G1 WI GA-Z97X-GAMING G1 LGA1150/ Intel Z97/ DDR3/ 4-Way CrossFireX & SLI/ SATA3&USB3.0/ A&2GbE/
