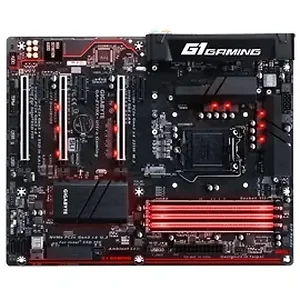

Gigabyte GA-Z170X-ULTRA GAMIN Motherboard GA-Z170X-Ultra Gaming Z170 Core i7/i5/i3 DDR4 SATA LGA1151 HDMI/Mini-DisplayPo

Features:

• Supports 6th Generation Intel Core Processor
• Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel USB 3.1 with USB Type-C & PD 2.0 100W Support
• 2-Way SLI & CrossFire Multi-Graphics Support
• NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel SSD 750
• Best Support for 3 Intel SSD 750 Devices in RAID 0
• 2 SATA Express Connectors for Up to 16Gb/s Data Transfer
• Intel GbE LAN with cFosSpeed Internet Accelerator Software
• High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
• Ultra-Durable Metal Shielding over PCIe and DDR Slots
• Ultra-Durable Anti-Sulfur Resistors for Longer Lifespan
• Ultra-Durable Anti-Rust Rear I/O Connectors
• Dual Hybrid Fan Headers with Precise PWM / Voltage Control for Water Pump & Fan
• GIGABYTE UEFI DualBIOS Technology
• APP Center Including EasyTune and Cloud Station Utilities
• Rear Panel Mini DisplayPort-In for Future Feature Upgrade

Ambient Surround LED

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.

Dual Hybrid Fan Headers
Precise PWM and Voltage Control for Water Pumps or Fans

Many of today’s modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTE’s motherboards is the option to choose between voltage calibration or PWM modes.

CPU
Support for 6th/7th Gen Intel Core i7 processors/i5 processors/i3 processors/Intel Pentium Processor/Intel Celeron Processor in the LGA1151 Package
L3 Cache varies with CPU

Chipset
Intel Z170 Express Chipset

Memory
4 x DDR4 DIMM Socket supporting up to 64GB of System Memory
Dual Channel Memory Architecture
Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
Support for ECCC Unbuffered DIM 1Rx8/2Rx8 Memory Modules (Operate in Non-ECC Mode)
Support for non-ECC Unbuffered DIMM 1Rx8/2Rx5/1Rx16 Memory Modules
Support for Extreme Memory Profile (XMP) Memory Modules

Onboard Graphics
Integrated Graphics Processor Intel HD Graphics Support:
1 x HDMI Port Supporting a Maximum Resolution of 4096x2160 at 24Hz
1 x Mini-DisplayPort, Supporting a Maximum Resolution of 4096x2304 at 60Hz
Maximum Shared Memory of 512MB

Audio
Realtek ALC892 Codec
High Definition Audio
2/4/5.1/7.1 Channel
Support for S/PDIF Out

LAN
Intel GbE LAN Chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIE x16)
1 x PCI Express x16 slot, running at x8 (PCIE x8)
1 x PCI Express x16 Slot, running at x4 (PCIE x4)
3 x PCI Express x1 Slots

Multi-Graphics Technology
Support for NVIDIA Quad GPU SLI and 2-Way NVIDIA SLI Technologies
Support for AMD Quad GPU CrossFire X and 2-Way AMD CrossFire Technology

Storage Interface
Chipset:
- 1 x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD Support)
- 1 x U.2 Connector
- 2 x SATA Express Connectors
- 6 x SATA 6Gb/s Connectors
Support for RAID 0, 1, 5, 10

USB
Chipset + Intel USB 3.1 Controller:
- 1 x USB Type-C port on the Back Panel, with USB 3.1 Support
- 1 x USB 3.1 Type-A Port (Red) on the Back Panel
Chipset:
- 6 x USB 3.0/2.0 Ports (4 Ports on the Back Panel, 2 Ports Available through the Internal USB Header)
- 6 x USB 2.0/1.1 Ports (2 Ports on the Back Panel, 4 Ports Available through the Internal USB Headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x U.2 connector
1 x M.2 Socket 3 connector
2 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan/pump header (CPU_OPT_PUMP)
2 x system fan headers
1 x system fan/water cooling pump header (SYS_FAN2_PUMP)
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.1 support
1 x USB 3.1 Type-A port (red)
1 x Mini-DisplayPort In port
1 x Mini-DisplayPort
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan (pump) speed detection
CPU/System/Chipset overheating warning
CPU/CPU OPT/System fan (pump) fail warning
CPU/CPU OPT/System fan (pump) speed control

BIOs
2 x 128 Mbit Flash
Use of Licensed AMI UEFI BIOs
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
3D OSD
BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
ON/OFF Charge
Platform Power Management
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

Bundle Software
Norton Internet Security (OEM Version)
Intel Smart Response Technology
cFosSpeed

Operating System
Support for Windows 10/8.1 64-Bit
Support for Windows 7 32/64-Bit

Form Factor
ATX Form Factor

Item Dimension (L"xW"xH")
14 x 11 x 4

Weight
4.00 lb

Warranty Information
3 Years
