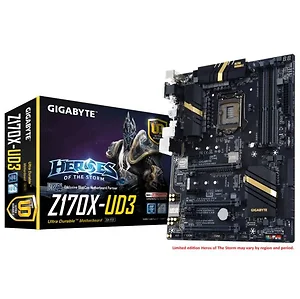

Gigabyte GA-Z170X-UD3 ATX Motherboard

Specifications

• CPU: LGA1151
  • Supports Intel Core i7, i5, i3, Pentium, Celeron Processors
• Chipset: Intel Z170 Express
• Memory: 4x DDR4-3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666(OC) / 2400(OC) / 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports 3-Way / 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology
• Storage:
  • SATA: 6x SATA3 Ports, Six support RAID 0, 1, 5, 10, 3x SATA Express Ports
  • M.2: 2x M.2 Ports (type 2242 / 2260 / 2280), Support SATA & PCI-Express SSD
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC, Supports S/PDIF Output
• LAN: Intel Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Ports (1 Type-C, 1 Type-A), 7x USB 3.0 / 2.0 Ports (3 rear, 4 via headers), 6x USB 2.0 / 1.1 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 23.5 cm
