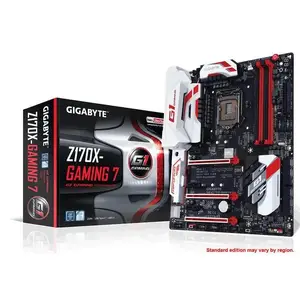

Gigabyte GA-Z170X-GAMING 7 LGA1151/ Intel Z170/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.1/ M.2&SATA Express/ A&2G

Specifications

• Mfr Part Number: GA-Z170X-GAMING 7
• CPU: LGA1151
  • Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel Z170 Express
• Memory: 4x DDR4-3200 (OC)/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology

• Storage:
  • SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10; 3x SATA Express Ports

  • M.2: 2x M.2 Ports
• Audio: Creative Sound Core 3D Chip 5.1-channel High Definition Audio CODEC
• LAN: Intel Gigabit Ethernet Controller, Qualcomm Atheros Killer E2400 Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Ports (1 rear, 1 Type-C), 9x USB 3.0/2.0 Ports (5 rear, 4 via headers), 4x USB 2.0/1.1 Ports (4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x Display Port, 1x HDMI Port, 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O Jacks

• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm
