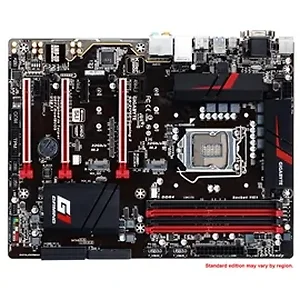

Gigabyte GA-Z170X-GAMING 3 Motherboard GA-Z170X-GAMING 3 LGA1151 Z170 DDR4 SATA PCI-Express ATX Retail

Extreme Intel USB 3.1 Controller
The Intel USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering 16 Gb/s of total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

Realtek ALC1150 115dB SNR HD Audio
The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

CPU
1.Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
2.L3 cache varies with CPU

Chipset
1.Intel Z170 Express Chipset

Memory
1.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
2.Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
3.Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
4.Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
5.Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1.1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
3.1 x HDMI port, supporting a maximum resolution of 4096x2160 at 24 Hz
4.Support for up to 3 displays at the same time
5.Maximum shared memory of 512 MB

Audio
1.Realtek ALC1150 codec
2.TI Burr Brown OPA2134 operational amplifier
3.Support for Sound Blaster X-Fi MB3
4.High Definition Audio
5.2/4/5.1/7.1-channel
6.Support for S/PDIF Out

LAN
1.Qualcomm Atheros Killer E2201 LAN chip (10/100/1000 Mbit)

Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2.1 x PCI Express x16 slot, running at x4 (PCIEX4)
3.3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Item Dimension (L"xW"xH")
13 x 11 x 3

weight
2.58 lb

Warranty Infotmation
3 Years
