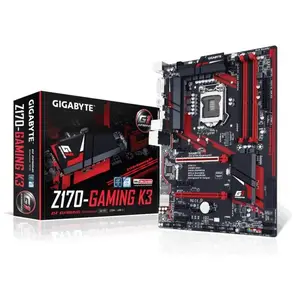

Gigabyte GA-Z170-GAMING K3 LGA1151/ Intel Z170/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Mothe

•  Supports 6th Generation Intel® Core™ Processor
•  Dual Channel DDR4, 4 DIMMs
•  Fast USB 3.1 -The World’s Next Universal Connector
•  2-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
•  Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
•  2 SATA Express Connectors for up to 16Gb/s Data Transfer
•  115dB SNR HD Audio with Built-in Rear Audio Amplifier
•  Killer™ E2200 Gaming Networks
•  High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
•  APP Center Including EasyTune™ and Cloud Station™ Utilities
•  GIGABYTE UEFI DualBIOS™ Technology

CPU
1. Support for Intel Core^TM i7 processors/Intel Core^TM i5 processors/ Intel Core^TM i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU

Chipset
Intel Z170 Express Chipset

Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
( Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.)
2. Dual channel memory architecture
3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
(The DVI-D port does not support D-Sub connection by adapter.)
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 24 Hz
(Support for HDMI 1.4 version.)
Maximum shared memory of 512 MB

Audio
1.Realtek ALC1150 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out

LAN
Killer^TME2201 LAN (10/100/1000 Mbit)

Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x2 mode.)
3. 4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology
Support for 2-Way AMD CrossFire ^TM technology

Storage Interface
Chipset:
1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2/x1 SSD support)
2.2 x SATA Express connectors
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB Chipset:
1.6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2.4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.1 Controller:
1. 2 x USB 3.1 Type-A ports (red) on the back panel

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 2 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling fan header (CPU_OPT)
8. 3 x system fan headers
9. 1 x front panel header
10 .1 x front panel audio header
11. 1 x S/PDIF Out header
12. 1 x USB 3.0/2.0 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Thunderbolt^TM add-in card connector
16. 1 x serial port header
17. 1 x Clear CMOS jumper

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 2 x USB 3.1 Type-A ports (red)
5. 4 x USB 3.0/2.0 ports
6. 1 x RJ-45 port
7. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
1. System voltage detection
2. CPU/System temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
(Whether the fan speed control function is supported will depend on the cooler you install.)

BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS^TM
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.

Unique Features
1. Support for APP Center(Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)
3D OSD
At BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
System Information Viewer
USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Bundle Software
1. Norton Internet Security (OEM version)
2. Intel Smart Response Technology

Operating System
1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
(Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.)

Form Factor
ATX Form Factor 30.5cm x 23.1cm

Box Contents
1. GA-Z170-Gaming K3 motherboard
2. Four SATA cables
3. Motherboard driver disk
4. I/O Shield
5. Users Manual
6. One G Connector
7. Quick Installation Guide

Item Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
3.00lb

Warranty Information
3 years
