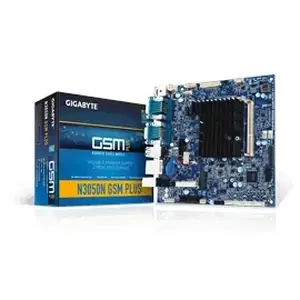

Gigabyte GA-N3050N GSM PLUS Motherboard GA-N3050N GSM PLUS Dual-Core Celeron N3050 DDR3L PCI Express SATA Mini-ITX Ratai

•  Built-In Intel Celeron N3050 ( 1.6GHz ) Dual Core processor
•  Support Dual Channel DDR3L SODIMM
•  Support LVDS 18bit/24bit , HDMI , D-SUB VGA
•  Support onboard total 6 COM ports.
( COM1 Support RS232/422/485 select by Jumper )
( COM1 ~ COM4 Support RI/5V/12V power select by BIOS )
•  Support onboard TPM Module Connector
•  Support onboard Printer Port LPT connector
•  Support onboard M.2 ( 2242 ) and Mini PCIe ( Half Size )
•  Support DC-IN 12V

CPU
1.Built in with an Intel Dual-Core Celeron N3050 SoC (1.6 GHz) (Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.)
2.TDP 6W
3.L1/L2 varies with CPU

Memory
1.2 x DDR3L DIMM sockets supporting up to 8 GB of system memory
(If only one memory module is to be installed, be sure to install it in the SODIMM1 socket.)
2.Dual channel memory architecture
3.Support for DDR3L 1333/1600 MHz memory modules
(Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz.)
4.Support for non-ECC memory modules

Onboard Graphics
Integrated in the SoC:
1.1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
2.1 x HDMI port, supporting a maximum resolution of 3840x2160 at 30 Hz

Audio
1.Realtek ALC269 codec
2.High Definition Audio
3.2-channel

LAN
1.Realtek RTL8111HS GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1.1 x PCI Express x1 slot
2.1 x Mini PCIe slot (half size) (MIN_PCIE)
(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface
Integrated in the SoC: 1.2 x SATA 6Gb/s connectors
( The M.2 slot shares bandwidth with the SATAIII_1 connector. The SATAIII_1 connector becomes unavailable when an M.2 SSD is installed. )
1 x M.2 slot (B/M key, type 2242 SATA and PCIe x1 SSD support) (M2_M)

USB
Integrated in the SoC:
1.4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2.6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1.1 x 4-pin ATX 12V power connector
2.1 x CPU fan header
3.1 x system fan header
4.1 x front panel header
5.1 x front panel audio header
6.2 x SATA 6Gb/s connectors
7.1 x M.2 slot
8.1 x SATA power connector
9.1 x battery cable header
10.1 x USB 3.0/2.0 header
11.1 x USB 2.0/1.1 header
12.1 x Trusted Platform Module (TPM) header
13.4 x serial port headers
14.1 x COM1 function select jumper
15.1 x parallel port header
16.1 x LVDS header
17.1 x LCD inverter connector
18.1 x Clear CMOS jumper

Back Panel Connectors
1.1 x DC In power connector
2.2 x serial ports
3.1 x D-Sub port
4.1 x HDMI port
5.4 x USB 2.0/1.1 ports
6.2 x USB 3.0/2.0 ports
7.1 x RJ-45 port
8.3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
1.iTE I/O Controller Chip

H/W Monitoring
1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan fail warning
4.CPU/System fan speed detection
5.CPU/System fan speed control
( Whether the fan speed control function is supported will depend on the cooler you install. )

BIOS
1.1 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
1.Support for Windows 10 32-bit/64-bit
2.Support for Windows 8.1/7 64-bit
( Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.)

Form Factor
Mini-ITX Form Factor
17.0cm x 17.0cm

Item Dimension (L inchxW inchxH inch)
9 x 8 x 3

Weight
2.00lb

Warranty Information
3 years
