Special Order
Ships in 1-2 weeks
Condition: New
CPU
1.Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
2.L3 cache varies with CPU
Chipset
1.Intel H170 Express Chipset
Memory
1.4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
2.Dual channel memory architecture
3.Support for DDR3 1600/1333 MHz memory modules
4.Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1.1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
3.1 x HDMI port, supporting a maximum resolution of 4096x2160 at 24 Hz
4.Support for up to 3 displays at the same time
5.Maximum shared memory of 512 MB
Audio
1.Realtek ALC892 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out
LAN
1.Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.1 x PCI Express x16 slot, running at x4 (PCIEX4)
3.2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1.Support for 2-Way AMD CrossFire technology
Storage Interface
Chipset:
1.1 x M.2 Socket 3 connector
2.2 x SATA Express connectors
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, RAID 5, and RAID 10
BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
1.Support for Windows 10/8.1/7
Item Dimension (L"xW"xH")
13 x 11 x 3
weight
2.58 lb
Warranty Infotmation
3 Years

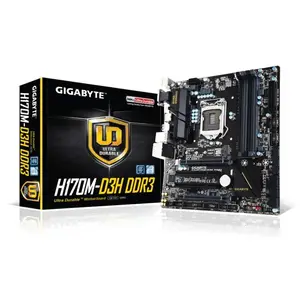

Gigabyte GA-H170M-D3H DDR3 LGA1151/ Intel H170/ DDR3/ 2-Way CrossFireX/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE/ MicroATX
