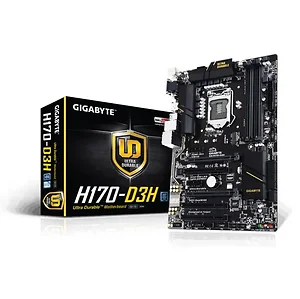

Gigabyte GA-H170-D3H ATX Motherboard for LGA1151 CPUs

Features

• CPU Support: Compatible with Intel Core i7, i5, i3, Pentium, and Celeron processors (LGA1151).
• Chipset: Intel H170 Express.
• Memory Capacity: 4x DDR4-2133 DIMM slots supporting up to 64GB, with Dual Channel, ECC, Non-ECC, and Unbuffered types.
• Expansion Slots: 2x PCI-Express 3.0 x16 (one at x4), 2x PCI-Express 3.0 x1, and 3x PCI slots.
• Multi-Graphics: Supports 2-Way AMD CrossFireX technology for enhanced graphics performance.
• Storage Solutions:
  • SATA Support: 6x SATA3 ports with RAID 0, 1, 5, 10 support; 2x SATA Express ports.
  • M.2 Support: 1x M.2 port (type 2242/2260/2280) for SATA & PCI-Express SSDs.
• Audio: Realtek ALC1150 7.1-Channel Hi-Def Audio CODEC, supports S/PDIF output.
• LAN Connectivity: Intel Gigabit Ethernet Controller for reliable network performance.
• Ports: 8x USB 3.0/2.0 ports (4 rear, 4 via headers), 6x USB 2.0/1.1 ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse port, 1x VGA port, 1x HDMI port, 1x DVI-D port, 1x RJ45 LAN port, and Audio I/O jacks.
• Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector.
• Form Factor: ATX, dimensions of 30.5 x 21.4 cm.
