Gigabyte GA-AB350N-GAMING WIFI Socket AM4/ AMD B350/ DDR4/ SATA3&USB3.1/ M.2/ WiFi/ A&GbE/ Mini-ITX Motherboard

Specifications

• Mfr Part Number: GA-AB350N-GAMING WIFI

• CPU: Socket AM4
  • AMD RYZEN processor

  • AMD 7 Generation A-series/ Athlon processor

• Chipset: AMD B350

• Memory: 2x DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB

• Slots: 1x PCI-Express 3.0 x16 Slot

• Storage:
  • SATA: 4x SATA3 Ports, Support RAID 0, 1, 10

  • M.2: 1x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)

• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC

• LAN: Realtek Gigabit Ethernet Controller; Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR

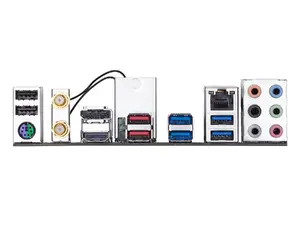

• Ports: 2x USB 3.1 Gen 2 Ports (2 Type-A rear), 2x USB 3.1 Gen 1 Ports (2 via headers), 4x USB 2.0/1.1 Ports (2 rear, 2 via header), 1x PS/2 Keyboard/Mouse Port, 2x SMA antenna Connectors, 1x DisplayPort, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector

• Form Factor: Mini-ITX, 17.0 x 17.0 cm
