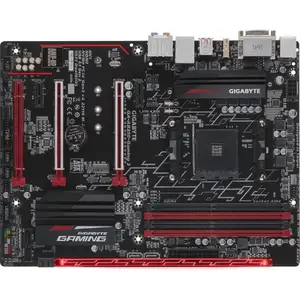

GA-AB350-GAMING 3 - Gigabyte AM4 B350 RYZEN MAX-4GB DDR4 ATX PCIE16

CPU
AM4 Socket:
AMD RYZEN processor
2.AMD 7th Generation A-series/ Athlon processor Chipset
AMD B350 Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Onboard Graphics
1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 24 Hz
Maximum shared memory of 2 GB Audio
Realtek ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out LAN
Realtek GbE LAN chip (10/100/1000 Mbit) Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10 Multi-Graphics Technology
Support for 2-Way AMD CrossFire Technology USB
Chipset :
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports (available through the internal USB header)
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
CPU :
4 x USB 3.1 Gen 1 ports on the back panel Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip extension cable header
1 x Clear CMOS jumper Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
1 x USB 2.0/1.1 port
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) I/O Controller
iTE I/O Controller Chip H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
Support for APP Center :
at BIOS
3D OSD
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC UP 2
V-Tuner
Support for Q-Flash
Support for Xpress Install Bundle Software
Norton Internet Security (OEM version)
cFosSpeed Operating System
Support for Windows 10 64-bit
Support for Windows 7 64-bit Form Factor
ATX Form Factor 30.5cm x 23.0cm Item Dimension (L"xW"xH")
13 x 11 x 3
