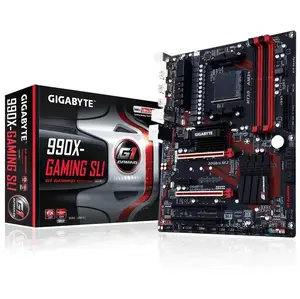

Gigabyte GA-990X-GAMING SLI Socket AM3+/ AMD 990X/ DDR3/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Mothe

• 2-Way Graphics Support Supports AMD AM3+/ AM3 Processor
• Dual Channel DDR3, 4 DIMMs
• Fast USB 3.1 -The World’s Next Universal Connector
• PCIe Gen2 x4 22110 M.2 Connector with up to 20Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
• with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
• 115dB SNR HD Audio with Built-in Rear Audio Amplifier
• Intel GbE LAN with cFosSpeed Internet Accelerator Software
• High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
• GIGABYTE USB DAC- APP Center UP ports
• All new GIGABYTE, simple and easy use
• GIGABYTE UEFI DualBIOS Technology

Fast Onboard Storage with 20Gb/s M.2

GIGABYTE 22110/2280/2260/2242 M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

2-Way CrossFire / 2-Way SLI Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising

CPU
AM3+ Socket:
- AMD AM3+ FX Processor
- AMD AM3 Phenom II Processor/AMD Athlon II Processor

Hyper Transport Bus
HyperTransport 3.0
5200 MT/s

Chipset
North Bridge: AMD 990X
South Bridge: AMD SB950

Memory
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Dual Channel Memory Architecture
Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules
Support for Extreme Memory Profile (XMP) memory modules

Audio
Realtek ALC1150 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x1 slots
2 x PCI Slots

Multi-Graphics Technology
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies

Storage Interface
South Bridge:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2/x1 SSD support)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

USB
South Bridge: 12 x USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)
VIA VL805 Chip: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
ASMedia USB 3.1 Controller: 2 x USB 3.1 Type-A ports (red) on the back panel

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x USB 3.1 Type-A port (red)
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control

BIOs
2 x 32Mbit Flash
Use of Licensed AMI UEFI BIOs
Support for DualBIOs
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOs 2.7, ACPI 5.0

Unique Features
Support for APP Center
BIOs
Ambient LED
Cloud Station
EasyTune
Game Controller
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker

Bundle Software
Norton Internet Security (OEM Version)
cFosSpeed

Operating System
Support for Windows 10/8.1/7 32/64-Bit

Form Factor
ATX

Item Dimension (L"xW"xH")
13 x 11 x 3

Weight
3.10 lb

Warranty Information
3 Years
