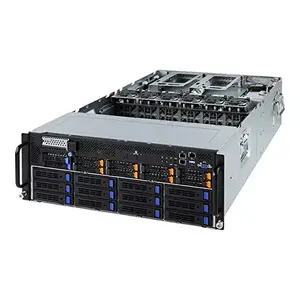

G481-HA0 - Gigabyte Server G481-HA0 4U HPC Server MG61-G40 Xeon 2xLGA3647 C621 12x3.5HS

Dimensions
4U
Motherboard
MG61-G40 CPU
2nd Generation Intel Xeon Scalable and Intel Xeon Scalable Processors
Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Socket
2 x LGA 3647
Socket P
TDP up to 205W Chipset
Intel C621 Express Chipset Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel Optane^TM DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

- Ambient temperature 35^oC
- 2nd Generation Intel Xeon Scalable processor 205W (Max.)
- DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel Xeon Scalable Processors only
2. Intel Optane^TM DC Persistent Memory for 2nd Generation Intel Xeon Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35^oC
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative LAN
Rear Side:
2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
1 x 10/100/1000 management LAN
Front Side:
2 x 1Gb/s BASE-T LAN ports (Intel I350-AM2)
^note 4 x QSFP28 LAN ports with Intel Omni-Path Host Fabric Interface (as an option)
- Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports

NOTE: Please select Intel Xeon processors with Omni-Path Architecture to enable Intel Omni-Path Host Fabric Interface Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp, DDR4 SDRAM Storage
12 x 3.5" hot-swappable HDD/SSD bays
- Compatible with SATA/SAS devices only
10 x 2.5" hot-swappable HDD/SSD bays
- 8 x amber HDD trays compatible with NVMe or SATA/SAS devices
- 2 x blue HDD trays compatible with SATA/SAS devices only

Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port SATA
Supported SAS
Supported RAID
For SATA/SAS drives:
Pre installed Broadcom SAS3008 SAS Card
Software RAID, IR mode

For NVMe drives:
Intel Virtual RAID On CPU (VROC) RAID 0, 1, 10, 5
Note: VROC module is compatible for IntelSSD only Peripheral Drives
- Expansion Slots
10 x PCIe x16 slots (Gen3 x16 bus) for GPUs
1 x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot in front, occupied by CRA3338 HBA
1 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slot at rear
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations Internal I/O
1 x TPM header
1 x VROC connector
1 x Front VGA header
1 x Serial header Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN (Reserved, enabled by cable switch)
4 x Omni-Path QSFP28 LAN ports (Reserved)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
1 x Omni-Path activity LED Rear I/O
2 x RJ45
1 x MLAN (Primary port) Backplane I/O
12 x 3.5" ports and 10 x 2.5" ports TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply
3 x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V-/ 14A, 47-63Hz
- 200-240V-/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V-
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord System Management
Aspeed AST2500 management controller
Avocent MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM and vMedia (HTML5)
