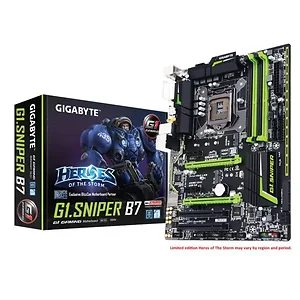

Gigabyte G1.SNIPER B7 LGA1151/ Intel B150/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE/ ATX Motherboar

•  Supports 6th Generation Intel® Core™ Processor
•  Dual Channel DDR4, 4 DIMMs
•  2-Way Graphics with Premium PCIe Lane
•  PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
•  SATA Express Connector for up to 16Gb/s Data Transfer
•  115dB SNR HD Audio with Built-in Rear Audio Amplifier
•  8-channel HD Audio with High Quality Audio Capacitors
•  Audio Noise Guard with Ambient LED Trace Path Lighting
•  Intel® GbE LAN with cFosSpeed Internet Accelerator Software
•  Triple USB DAC-UP ports
•  APP Center Including EasyTune™ and Cloud Station™ Utilities
•  GIGABYTE UEFI DualBIOS™ Technology
•  Support Intel® Small Business Basics

CPU
1. Support for Intel Core^TM i7 processors/Intel Core ^TM i5 processors/ Intel Core^TM i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU

Chipset
Intel B150 Express Chipset

Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
(Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.)
2. Dual channel memory architecture
3. Support for DDR4 2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
(The DVI-D port does not support D-Sub connection by adapter.)
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 24 Hz
(Support for HDMI 1.4 version.)
Maximum shared memory of 512 MB

Audio
1. Realtek ALC1150 codec
2. TI NE5532 operational amplifier
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

LAN
Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 2 x PCI slots
5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Multi-Graphics Technology
1. Support for 2-Way AMD CrossFire^TM technology

Storage Interface
Chipset:
1. 1 x M.2 Socket 3 connector (M2F_32G) (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2/x1 SSD support)
2. 1 x SATA Express connector
(Not compatible with regular SATA devices.)
3. 6 x SATA 6Gb/s connectors

USB
Chipset:
1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 5 x USB 2.0/1.1 ports (1 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 1 x SATA Express connector
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.0/2.0 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x Thunderbolt^TM add-in card connector
15. 1 x serial port header
16. 1 x Clear CMOS jumper
17. 1 x audio gain control switch

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.0/2.0 ports
5. 1 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
1. iTE I/O Controller Chip

H/W Monitoring
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
( Whether the fan speed control function is supported will depend on the cooler you install.)

BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS^TM
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1. Support for APP Center
(Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)
3D OSD
At BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Bundle Software
1. Norton Internet Security (OEM version)
2. cFosSpeed

Operating System
1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
(Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.)

Form Factor
ATX Form Factor
30.5cm x 22.5cm

Item Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
3.00lb

Warranty Information
3 years
