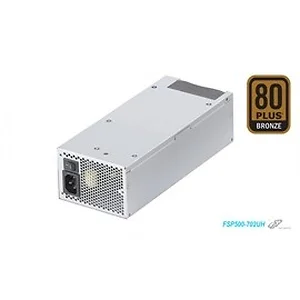

FSP500-702UH - Fsp Group FSP 500W ATX Power Supply with 80PLUS Bronze Certification

Special Order
Ships in 1-2 weeks
Condition: New

$136.67  $184.50
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The FSP 500W ATX Power Supply is designed for reliability and efficiency, providing a total output power of 500 watts at 50C. Featuring an active PFC and an 80PLUS Bronze certification, this power supply ensures energy efficiency while keeping your system stable. Its compact design and efficient thermal management with a single 70mm ball-bearing fan make it suitable for various setups, especially in space-constrained environments.

Technical Specifications

  • Cooling: Single 70mm ball-bearing fan linked with thermal sensor
  • Total Output Power: 500-watt total continuous output at 50C
  • Output Connectors: Main 20+4 Pin, (1) EPS 8-Pin, (3) Molex 4-Pin, (1) FDD 4-Pin, (2) Serial-ATA
  • 80PLUS Certified: Yes
  • Modular Cable: N/A
  • Safety Approval: FCC
  • MTBF: 100,000 hours at typical conditions
  • Input Voltage: 115V AC to 230V AC, 47-63Hz
  • Power Factor Correction: Active PFC full range
  • Input Protection: Patented input fuse protection
  • Output Specifications:
    • +3.3V DC - 20.0A
    • +5V DC - 20.0A
    • +12V1 DC - 16.0A
    • +12V2 DC - 16.0A
    • +12V3 DC - 16.0A
    • -12V DC - 0.5A
    • +5Vsb DC (Standby) - 3.0A
  • Output Protection: Complete OVP, OCP, SCP
  • Dimensions: 9.45 x 3.94 x 2.76 inches
  • Weight: 4.0 lbs
  • Warranty: 2 Years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • FSP Group
  • FSP500-702UH
  • 845685001467
  • New
  • 1 lbs
  • 0 X 0 X 0
  • May 27, 2026
  • Jun 16, 2011
Product Identifiers: Brand: Fsp Group • Part #: FSP500-702UH • UPC: 845685001467 • Category: Server Power Supplies
