SKU: PLT589MJPZ |  Mfg. Part: FSP40060EPN-B204  | UPC: 677808611877  |
 3 Reviews  |     Share

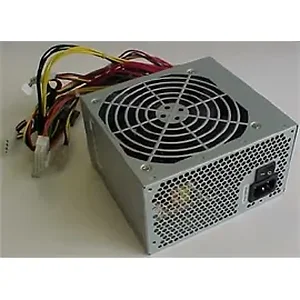

Sparkle Power FSP40060EPN-B204 SPI FSP40060EPN-B204 400W ATX Power Supply 80PLUS Bronze

Out of Stock
Condition: New

$86.34  $116.56
 Free Shipping for this Item

Product Overview

The SPI FSP40060EPN-B204 is a reliable 400W ATX power supply that meets 80PLUS Bronze efficiency standards. This power supply is designed to provide stable and efficient power delivery for your computer system. With a full range of input voltage and various safety features, it ensures safe operation and longevity.

Technical Specifications

  • Temperature Range: Operating: 0°C to +25°C; Storage: -40°C to +70°C
  • Humidity: 85% on Operating, 95% on Storage
  • Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second
  • Efficiency: 82% Minimum
  • Rise Time: Less than 20ms
  • Hold-Up Time: 16ms Minimum at Nominal Input Voltage
  • Power Good Signal: Power on Delay Time 100 to 500ms, off Delay 1ms Minimum (TTL and CMOS Compatible)
  • Leakage Current: Less Than 3.5mA at 264V AC, 50Hz
  • MTBF: 100,000 Hours on Maximum Load at +25°C
  • Input Characteristics: Input Range: 90 to 264V AC (RMS), Full Range Input; Frequency: 47 to 63 Hz; Input Current: Max 8.0A at 115V AC, 3.0A at 230V AC; Inrush Current: No Damage
  • Output Characteristics: +3.3V: 0.5A, 15.82A, 24A; +5V: 0.3A, 9.89A, 15A; +12V1: 0.5A, 11.86A, 17A; +12V2: 0.5A, 11.86A, 17A; -12V: 0A, 0.25A, 0.3A; +5Vsb: 0A, 2.12A, 2.5A
  • Item Dimension: 6” x 6” x 4”
  • Weight: 4.40 lb
  • Warranty Information: 1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • FSP40060EPN-B204
  • B01K1JIV2S
  • 677808611877
  • New
  • 8.38 lbs
  • 9 X 4 X 8
  • Feb 19, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Sparkle Power • Part #: FSP40060EPN-B204 • UPC: 677808611877 • ASIN: B01K1JIV2S • Category: Monitor Supplies

Sparkle Power FSP40060EPN-B204 SPI FSP40060EPN-B204 400W ATX Power Supply 80PLUS Bronze
