Is the FSP300-60PLNR in stock?

The FSP300-60PLNR is currently out of stock. Please check back or request a quote for availability.

SKU: Z8YBRXPYUQ | Mfg. Part: FSP300-60PLNR | UPC: 677808610542 |

1 Reviews | Share

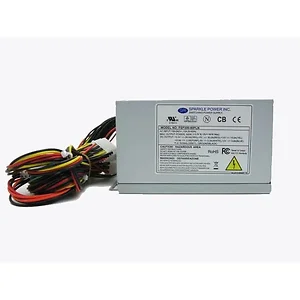

Sparkle Power FSP300-60PLNR 300W ATX Power Supply with Active PFC and Low Noise

Name: FSP300-60PLNR Sparkle Power 300W ATX Power Supply with Active PFC and Low Noise
Brand: Sparkle Power
SKU: Z8YBRXPYUQ
Price: 90.41 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Out of Stock
Condition: New

$90.41 ~~$122.05~~

Free Shipping for this Item

Product Overview

The 300W ATX Power Supply is designed for optimal performance and quiet operation. Featuring Active Power Factor Correction (PFC), this power supply efficiently manages power demands while reducing noise levels. Ideal for gaming and high-performance PCs, it ensures reliable power delivery with numerous protective features.

With universal input voltage and a robust set of specifications, this power supply meets the demands of modern computing environments while ensuring compliance with international safety standards.

Technical Specifications

Specifications

20-pin Main Power connector
Complies with ATX and ATX12V standards
Active Power Factor Correction (PFC) meets EN61000-3-2
High efficiency and reliability
Remote On/Off function
Internal 12V DC fan included
Noise Killer (Thermal fan speed control function)
Low noise and ripple
Complies with FCC part 15 subpart J class B and CISPR 22 Class B
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Approved by UL 1950, CSA C22.2 Level 3, TUV EN60950, NEMKO (CB Report), and CE
Input:
- Input Range: 90 ~ 264 V AC, Full Input Range
- Frequency: 47 ~ 63 Hz
- Input Current: 6A (RMS) @115V AC, 3A (RMS) @230VAC
- Inrush Current: 60A Max for 115V AC, 90A Max for 230V AC
Output:
- Total Watts: 300 W
- +5V and +3.3V total output not to exceed 180W
- +3.3V, +5V, and +12V total output not to exceed 280W
Dielectric Withstand: Primary to frame ground 1800V AC for 1 second
Efficiency: 65% at minimum measured at nominal AC main voltage and frequency with maximum load on all output
Rise Time: Less than 20ms
Hold-up Time: 17ms minimum at nominal input voltage
Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible)
Leakage Current: Less than 0.75mA at 115V AC/60Hz
MTBF: 100,000 hours on maximum load at +25°C
Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
