FR12 - Furuno 12.1in Portrait Style Radar Display Works with DRS Antennas

Furuno 12.1" Portrait-Style Radar, less antenna

Risk Visualizer is a unique feature that allows the navigator to see areas with a high risk of collision as well as displaying the time to reach those areas, with many options for customization. This technology shows potential collision areas based on the current position and movement of all surrounding vessels, providing a quick and intuitive overview of the situation around your ship. Color-coded alerts help you assess the level of danger and plan your next move, contributing to the continuous improvement of safety at sea.

DRS Radars include features such as Fast Target Tracking, immediately displaying a vector line indicating the target’s speed and heading. When connected to an NXT Radar, solid-state features are unlocked, such as RezBoost Beam Sharpening and Target Analyzer, instantly identifying hazardous targets.

Custom AIS presentation, flexible Anti-Clutter controls, and a Stern Up presentation are all available.

Fast Target Tracking is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediatley calculate the target;s trajectory and display the velocity vector.

Echo Average is a Feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, preceipitation or dense fog.

The FR12 can show radar echoes overlaid on MapMEdia MM3D charts, requires 001-613-190-00 Chart Kit. Additionally, when connected to GP3700/F via ethernet, marks and lines can be displayed.

• RDP160-E Color LCD Display
• Sun Cover
• Power Cable
• Cable tie
• Flush Mount
• Documentation
• Fuse FGBO-A 250V 2 A PBF
• Tapping Screw 5x20 SUS304 x 4
• Cable Tie x 4
• F Mounting Sponge 10H x 2
• F Mounting Sponge 10V x 2
• Mounting Bracket and Knobs

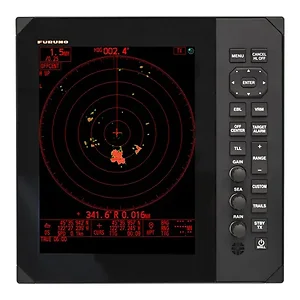

The Furuno FR12 is a 12.1-inch portrait-style color LCD radar display designed for marine navigation, offering a resolution of 1024 x 768 (XGA). This unit is intended for business and IT buyers in the maritime sector who require a dedicated radar interface compatible with Furuno DRS antenna units. It addresses the need for enhanced situational awareness and collision avoidance through features like Risk Visualizer, which identifies high-risk collision areas and time-to-reach estimates. When paired with NXT Radar sensors, it unlocks solid-state functionalities such as RezBoost Beam Sharpening and Target Analyzer for instant target identification. The FR12 also supports Fast Target Tracking for immediate vector display of target speed and heading, and Echo Average to stabilize echoes in adverse weather. It can overlay radar echoes on MapMedia MM3D charts with an optional chart kit, and integrates with GP3700/F for displaying marks and lines. Connectivity includes NMEA0183, NMEA2000, LAN, HDMI Out, and USB. This display operates on 12-24VDC and is rated IP55 for its front panel.
