SKU: AZTEKEYD58 |  Mfg. Part: FG-100D-BDL-G-900-24  | UPC: 094922334701  |
 1 Reviews  |     Share Make an offer

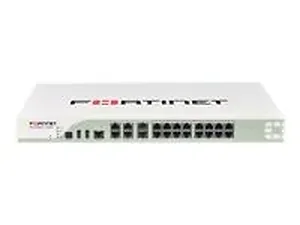

Fortinet FG-100D-BDL-G-900-24 FORTIGATE 100D H W 2Y 8X5 FC FG BDL SERVICE

Out of Stock
Condition: New

$4,030.27  $5,440.86

AUTHORIZED
 Free Shipping for this Item

Product Overview

Fortinet FG-100D-BDL-G-900-24 FORTIGATE 100D H W 2Y 8X5 FC FG BDL SERVICE

Technical Specifications

FORTIGATE-100D H/W W/ 2Y 8X5 FC/FG BDL Fortinet FortiGate 100D - Security appliance - with 2 years FortiCare 8X5 Enhanced Support + 2 years FortiGuard - 10Mb LAN, 100Mb LAN, Gigabit LAN - 1U The FortiGate-100D series delivers consolidated, fully integrated network security for small and medium businesses, branch offices of large enterprises as well as service provider customer premise equipment (CPE) applications. Accelerated security throughput, high port density, and ease of management enable you to deploy enterprise-class security. An integrated set of essential security technologies protects all of your applications and data.


Main Specifications

Product Description Fortinet FortiGate 100D - security appliance
Device Type Security appliance
Bundled Services 2 years FortiCare 8X5 Enhanced Support + 2 years FortiGuard
Enclosure Type External - 1U
Dimensions (WxDxH) 17 in x 11.5 in x 1.7 in
Weight 9.5 lbs
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec
Performance Firewall throughput (1518-byte packet size) : 2.5 Gbps
Firewall throughput (512-byte packet size) : 1 Gbps
Antivirus throughput : 700 Mbps
IPS throughput : 950 Mbps
Antivirus throughput (proxy) : 300 Mbps
Capacity Gateway to gateway IPSec VPN Tunnels : 1500
Client to gateway IPSec VPN tunnels : 5000
Concurrent sessions : 2500000
New sessions per second : 22000
Concurrent SSL VPN users : 200
Firewall policies : 10000
Virtual domains : 10
User licenses : unlimited
Features Firewall protection, VPN support, antivirus analysis, High Availability, Intrusion Prevention System (IPS), anti-spam protection, anti-malware protection
Power AC 120/230 V ( 50/60 Hz )


Extended Specifications

General
Device Type Security appliance
Bundled Services 2 years FortiCare 8X5 Enhanced Support + 2 years FortiGuard
Height (Rack Units) 1U
Width 17 in
Depth 11.5 in
Height 1.7 in
Weight 9.5 lbs
Networking
Form Factor External
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol IPSec
Performance Firewall throughput (1518-byte packet size) : 2.5 Gbps
Firewall throughput (512-byte packet size) : 1 Gbps
Antivirus throughput : 700 Mbps
IPS throughput : 950 Mbps
Antivirus throughput (proxy) : 300 Mbps
Capacity Gateway to gateway IPSec VPN Tunnels : 1500
Client to gateway IPSec VPN tunnels : 5000
Concurrent sessions : 2500000
New sessions per second : 22000
Concurrent SSL VPN users : 200
Firewall policies : 10000
Virtual domains : 10
User licenses : unlimited
Status Indicators Link activity, power, status, alarm
Features Firewall protection, VPN support, antivirus analysis, High Availability, Intrusion Prevention System (IPS), anti-spam protection, anti-malware protection
Encryption Algorithm SSL
Expansion / Connectivity
Interfaces 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ( WAN )
16 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x management - console - RJ-45
2 x USB - 4 pin USB Type A
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ( DMZ )
1 x management - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
Compliant Standards UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA Network IPS
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 63.1 Watt
Manufacturer Warranty
Service & Support Details Limited warranty - replacement - 2 years - response time: 3 days
Technical support - web support - 2 years
Product info support - e-mail consulting - 2 years
Product info support - web knowledge base access - 2 years
New releases update - 2 years
Virus definitions update - 2 years
Intrusion definitions update - 2 years
URL database update - 2 years
E-mail database update - 2 years
Technical support - phone consulting - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 90% (non-condensing)

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Fortinet
  • FG-100D-BDL-G-900-24
  • 094922334701
  • New
  • 15 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Fortinet • Part #: FG-100D-BDL-G-900-24 • UPC: 094922334701 • Category: Firewall & VPN

Fortinet FG-100D-BDL-G-900-24 FORTIGATE 100D H W 2Y 8X5 FC FG BDL SERVICE
