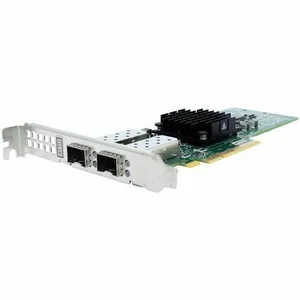

Atto Technology FFRM-N422-000 25GB Dual Channel Low Profile SFP28 PCIe Module

SKU: HNH8ON1JRQ |  Mfg. Part: FFRM-N422-000  | UPC: 603175009603  |  0 Reviews  |  Share Make an offer

10 Available
Condition: New

$742.40  $1,002.24
Need 10+? Request a volume quote
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The ATTO FastFrame 4 N422 is a dual-port Ethernet SmartNIC. It supports 25 Gigabit Ethernet and 10 Gigabit Ethernet protocols, with data transfer rates up to 25 Gbps per port. This expansion module features two SFP28 connectors and utilizes a PCIe 3.0 x8 interface. It comes in a low-profile form factor and includes both full and half-height brackets. The SmartNIC supports RDMA over Converged Ethernet (RoCE) and various hardware/software offloads, including LRO, LSO, TSO, RSS, and TSS.

Technical Specifications

  • Product Family: FastFrame 4
  • Model: N422
  • Ports: Dual
  • Max Transfer Rate: 25Gb/s
  • Connector: SFP28
  • Bus Characteristics: x8 PCIe 3.0
  • Form Factor: Low Profile
  • Operating System Support: Windows, Windows Server®, macOS, Linux
  • macOS Support Note: Supports macOS in Mac Pro and 3rd-Party Thunderbolt 5 chassis only
  • Network Standards: IEEE 802.3by (25 Gigabit Ethernet), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1p (Priority Encoding), IEEE 802.3ad (Link aggregation), IEEE 802.1qbb (Priority flow control)
  • Management Tools: ATTO360 Networking, ATTOview Time Series Database, ATTO Ethernet Suite custom installer
  • Operating Temperature: 0-55° C
  • Max Junction Temp: 110° C
  • Operating Humidity: 10-90% non-condensing
  • Storage Temperature: -40 C to 70° C
  • Storage Humidity: 5-95% non-condensing
  • Agency Approvals: FCC Part 15 Subpart B, Class A, EN55022: 2010, Class A, EN55024: 2010
  • Compliance: EN60950-1, EN60825-1, EN60825-2, RoHS, TAA Compliant
  • Included Modules: SFP28 module(s)
  • LED Indicators: 2 per port
