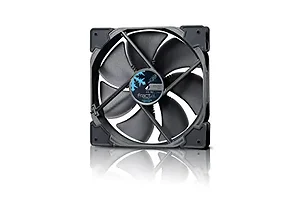

Venturi HP-14 PWM Fan. Featuring true FDB-bearings, providing silent operation coupled with a long lifespan . Equipped with a counter-pull magnet, that reduces the axial tension on the bearing. Optimized fan geometry as a high pressure fan, delivering high performance results in high restriction usage scenarios, such as in use with large heatsinks or water cooling radiators. Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplastic polymer. Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature. Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence. Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear. Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts.
Technical Specifications
Specifications Size 140 x 140 x 25 mm Screw hole pattern 125 x 125 mm / 105 x 105 mm Connector 4-pin Bearing FDB Number of blades 7 Rotational speed 1500 RPM Noise level 30.1 dB (A) Airflow (CFM) 78.1 Airflow (m3/h) 132.7 Static pressure 1.94 mm H2O Fan input power 1.4 W Fan max input current 0.2 A Fan input voltage 12 V Fan starting voltage 7 V Low (0-20%) PWM speed 400 RPM Low PWM noise level < 10 dB (A) Low PWM airflow (CMF) 24.0 Low PWM airflow (m3/h) 40.8 Low PWM static pressure 0.54 mm H2O MTBF 150,000 hours Cable length 500 mm Cable type Braided all-black ribbon wire Other Package contents Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable, 4 additional rubber corners, with 105 mm hole pattern Item Dimension (L"xW"xH") 2 x 8 x 6
Weight 1 lb
Warranty Information 3 years
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
Fractal Design
FD-FAN-VENT-HP14-PWM-BK
B00VYEI17U
817301013369
New
0.5 lbs
6 X 1 X 6
Jun 06, 2026
Nov 07, 2017
Product Identifiers:
Brand: Fractal Design •
Part #: FD-FAN-VENT-HP14-PWM-BK • UPC: 817301013369 • ASIN: B00VYEI17U • Category: Computer Case Fans
