Condition: New

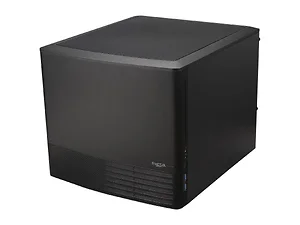

The Fractal Design Node 804 is a versatile micro ATX computer case that combines stylish aesthetics with practical functionality. Its dual-chamber layout effectively optimizes airflow and cooling potential, while also providing ample space for storage and expansion. With great attention to detail, this case is designed for easy assembly and cable management, making it an ideal choice for both novice and experienced builders.
The Fractal Design Node 804 (FD-CA-NODE-804-BL) is a micro ATX computer case designed for system builders and IT professionals requiring a compact yet capable chassis. This case features a dual-chamber layout, which aids in optimizing airflow and cooling for internal components. It supports Micro ATX and Mini ITX motherboards and provides five expansion slots for add-in cards. Storage options include eight 3.5" HDD positions, two 2.5" SSD positions, and two additional positions for either drive type.
Front panel connectivity includes two USB 3.0 ports and audio in/out. The design prioritizes ease of assembly and cable management, making it suitable for both new and experienced builders. The Node 804 is equipped with dust filters for front, top, and bottom fan mounts, contributing to system longevity. It comes with two pre-installed 120mm Silent Series R2 fans, operating at 1000 RPM, and offers extensive liquid cooling radiator support.
Specifications
3,5" HDD positions
8
2,5" SSD positions
2
Extra positions for either 3,5 or 2,5 drives
2
Expansion slots
5
Front ports
2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (white)
Total fan mounts
10
Front fan
4x 120 mm
Top fan
4x 120/140 mm
Rear fan 1
1x 120/140 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan at 1000 RPM)
Rear fan 2
1x 120 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan at 1000 RPM)
Dust filters
Front fans, Top fans, Bottom
Fixed velcro straps
Yes
Left side panel
Clear window
Right side panel
Steel Compatibility
Power supply type
ATX
Motherboard compatibility
Micro ATX, Mini ITX
Front radiator (left chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall using a radiator in this position prevents the use of a fan in the top position just next to it)
Front radiator (right chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall)
Top radiator (left chamber)
240 mm (up to 130 mm thick (with fans) radiators in this position limits the height of memory modules to 48 mm tall)
Top radiator (right chamber)
240/280 mm (up to 130 mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere)
PSU max length
260 mm
GPU max length
320 mm, 290 mm (if a fan is installed in the lower position in the front)
CPU cooler max height
160 mm Other
Package content
Node 804 computer case, accessory box and user manual
Additional information
Available for System Integrators Item Dimension (L"xW"xH")
17 x 15 x 19
Weight
35 lbs
Warranty Information
2 years
The Fractal Design Node 804 is compatible with Micro ATX and Mini ITX motherboard form factors.
The case supports eight 3.5" HDD positions, two 2.5" SSD positions, and two additional positions that can be used for either 3.5" or 2.5" drives, for a total of up to 12 drives.
The package content includes the Node 804 computer case, an accessory box, and a user manual. It also comes with two pre-installed 120mm Silent Series R2 fans.
The maximum GPU length supported is 320 mm. If a fan is installed in the lower front position, the maximum GPU length is reduced to 290 mm.
FD-CA-NODE-804-BL - Fractal Design CS FD-CA-NODE-804-BL-W Node804 microATX chassis 5expansion slots
