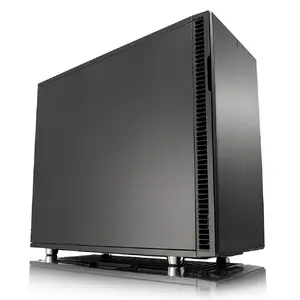

Fractal Design FD-CA-DEF-R6C-GY CS FD-CA-DEF-R6C-GY Define R6 USB-C Gunmetal EATX ATX mATX ITX

3.5"/2.5" Universal drive brackets
6 Dedicated 2.5" drive brackets
2 Dedicated 5.25" drive bracket
1 (removable) Expansion slots
7 + 2 vertical Motherboard compatibility
EATX (up to 285 mm wide), ATX, mATX, ITX Power supply type
ATX Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O Total fan mounts
9 Front fan
3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included) Top fan
Standard layout: 3 x 120 or 2 x 140
Open layout: 3 x 120/140 mm Rear fan
1 x 120/140 mm (1 x Dynamic X2 GP-14 included) Bottom fan
2 x 120/140 mm Dust filters
Bottom fan + PSU
Front fans
Top panel Front radiator
120/240/360 mm
140/280 mm Top radiator
Standard layout:
- 120/240/140/360 mm (max 35 mm motherboard component height)
Open layout:
- 120/240/360 mm
- 140/280/420 mm (max 35 mm motherboard component height) Rear radiator
120 mm Bottom radiator
120/240 mm
140/280 mm PSU max length
300 mm GPU max length
Max 440 mm with front fan mounted Standard layout:
Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm. CPU cooler max height
185 mm
