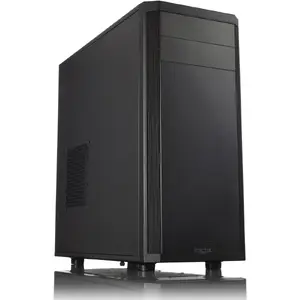

Fractal Design FD-CA-CORE-2300-BL Core 2300 No Power Supply ATX Mid Tower (Black)
Special Order Ships in 1-2 weeks Condition: New
$189.01$255.16
Free Shipping for this Item
Product Overview
Fractal Design FD-CA-CORE-2300-BL Core 2300 No Power Supply ATX Mid Tower (Black)
Technical Specifications
Specifications
Mfr Part Number: FD-CA-CORE-2300-BL
Features:
A Compact full-ATX case with buttom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support for its size, supporting up to one 240/280mm radiator in the front and a 240mm radiator in the top
Featuring a 120mm rear exhaust fan for great cooling
Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
Support tall CPU cooler towers, up to 162mm in height
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Innovative vertical HDD bracket, which simultaneously holds three 3.5" drives and three 2.5" drives
One additional SSD position behind the PSU area with easy installation and access
Case Type: ATX Mid Tower
Color: Black
Material: N/A
M/B Type: ATX, MicroATX, Mini-ITX
Drive Bays:
External Bay: 2x 5.25"
Internal Bay: 3x 3.5" HDD, 4x 2.5" SSD
Expansion Slots: 7
Cooling System:
Front: 1x 120mm Fractal Design Silent Fan (1200 RPM), 1x 120/140mm Fan Vent (Fan not Included)
Rear: 1x 120mm Fractal Design Silent Fan (1200 RPM)
Top: 2x 140/120mm Fan Vent (Fan not Included)
Bottom: 1x 120/140mm Fan Vent (Fan not Included, 140mm requires removal of lower HDD cage)
Side: 1x 140mm Fan Vent (Fan not Included)
Water Cooling Compatibility:
Front: 1x 240mm Radiator (up to 30mm thickness)
Front: 1x 240mm Radiator, (any thickness, push/pull supported, secondary mounting position, three fastening screws per fan only)
Front: Slim 280mm Radiator (15mm fan spacing required for full fastening, radiators with 20mm fan spacing can be used with only the top half fastened to the case, lower ODD slot may need to be unused depending on tube end chamber size)
Top: 1x Slim 240mm Radiator (w/ upper ODD slot occupied by a device no longer than 150mm and with no components on the upper 23mm on the motherboard that are taller than 34mm)
Rear: 1x 120mm Radiator
Side Windows: No
Front I/O Panel: 1x USB 3.0 Port, 1x USB 2.0 Port, Audio In & Out
Maximum Compatibility:
VGA Card Length: 380mm (w/o any HDD removal), 200nm (one or more 3.5" HDD may interfere with side-mounted power connectors)
CPU Cooler Height: 162 mm
Power Supply: None, 205/185mm Max ATX PSU (with a bottom 120/140mm fan)
