Technical Specifications
BARCODE SCANNER USB SBY

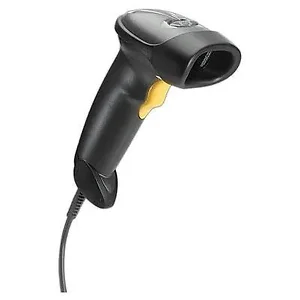

Used in conjunction with HP Point of Sale System, the HP USB Barcode Scanner is a small, lightweight hand-held scanner which scans from industry-standard barcodes for fast and easy input of retail information.
*
MAIN SPECIFICATIONS
Product Description HP USB Barcode Scanner - barcode scanner
Type Barcode scanner - handheld - USB - decoded
Dimensions (WxDxH) 3.3 in x 2.5 in x 6 in
Weight 5.1 oz
Scan Element Type Visible laser diode
Scan Speed 100 scan / sec
Connectivity Technology Wired
Manufacturer Warranty 1 year warranty
General
Type Barcode scanner - handheld
Width 3.3 in
Depth 2.5 in
Height 6 in
Weight 5.1 oz
Barcode
Interface Type USB
Scan Element Type Visible laser diode
Light Source Wave Length 650 nm
Scan Speed 100 scan / sec
Skew (Degrees) 65
Pitch (Degrees) 60
Decode Capability Code 93, Code 39, UCC/EAN-128, IATA, Code 39 Full ASCII, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Code 128 Full ASCII, Code 39 Trioptic
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator
Features Advanced Data Formatting (ADF), Reduced Space Symbology (RSS), Global Trade Item Number (GTIN)
Expansion / Connectivity
Interfaces 1 x USB
Miscellaneous
Included Accessories Stand
Cables Included 1 x USB cable
Compliant Standards VCCI, EN 60950, IEC950, UL 1950, CSA 22.2 No. 950, ICES-003 Class B, FCC Part 15 B, EMC
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 95%
Drop Specification 5 ft to concrete
