Product Overview

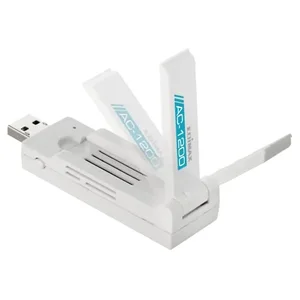

The EW-7822AC is the first adapter, which offers 802.11ac speeds and USB 3.0 connectivity. Upgrade PCs and laptops to super high speed 802.11ac WiFi and enjoy streaming video and data at speeds of up to 867Mbps.
Technical Specifications
Hardware
1 x USB 3.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED
2 x Antennas
Standards
2.4GHz: IEEE 802.11b, 802.11g, 802.11n
5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n Frequency Band
2.4000 - 2.4835GHz (subject to local regulations)
5.150 - 5.825GHz (subject to local regulations) Output Power
2.4GHz
11b (11Mbps): 6dBm +/- 1.5dBm
11g (54Mbps): 4dBm +/- 1.5dBm
11n (20MHz, MCS7): 14dBm +/- 1.5dBm
11n (40MHz, MCS7): 12dBm +/- 1.5dBm
5GHz
11a (54Mbps): 12dBm +/- 1.5dBm
11n (20MHz, MCS7): 10dBm +/- 1.5dBm
11n (40MHz, MCS7): 10dBm +/- 1.5dBm
11ac (80MHz, MCS7): 9.5dBm +/- 1.5dBm Installation
Multi-Language EZmax Setup Wizard
Hardware WPS Button for Easy Wireless Connections Operating Range
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15 (up to 144Mbps)
11n (40MHz): MCS0-15 (up to 300Mbps)
11ac (40MHz): MCS0-9 (up to 400Mbps)
11ac (80MHz): MCS0-9 (up to 867Mbps) LED
Link/Activity
Security
WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware and Software WPS Configuration
Certifications
CE/FCC Item Dimension (L"xW"xH"):
8 x 5.3 x 1.5
Weight:
0.38 lb
Warranty Information:
2 years
