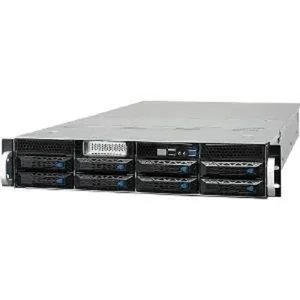

ESC4000 G4 - Asus System ESC4000 G4 2U Intel Xeon Skylake C621 DDR4 PCI Express SATA Retail

Processor / System Bus
2 x Socket P (LGA 3647)
Intel Xeon Scalable Processors Family (150W)
Intel Xeon Scalable Processors Family with OMNI-PATH FABRIC (supported on CPU1)(150W)
Refer to support page for more information
Core Logic
Intel Lewisburg PCH C621
Memory
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2048GB RDIMM
Memory Type :
DDR4 2666/2400 /2133 RDIMM
DDR4 2666/2400 /2133 LRDIMM
DDR4 2666/2400 /2133 LR-DIMM 3DS
Memory Size :
64GB, 32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Refer to support page for more information
Expansion Slots
Total: 8 + 3
Full-length/Full-height
8 PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link)
Half-length/Low-profile
Rear:
1 PCI-E 3.0 x24 (support with riser card)
(1 PCI-E x16 (x16 Gen3 Link) and 1 PCI-E x8 (x8 Gen3 Link))
Front:
1 PCI-E x8 (internal HBA/RAID card)
Storage
SATA Controller :
Intel C621
8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s PCI-E Gen3 x4 link /2280/2260) or 6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s PCI-E Gen3 x4 link /2280/2260)
Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
HDD Bays
8 x Hot-swap 3.5" HDD Bays
Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic
Aspeed AST2500 with 64MB VRAM
Front I/O Ports
1 x 80 port
2 x USB 3.0 ports + 2 x USB 2.0 ports
Rear I/O Ports
2 x USB 3.0 port
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x RJ-45 GbE LAN ports
Switch/LED
Rear Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
OS Support
Windows Server 2016
Windows Server 2012 R2
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Fedora
Management Solution
ACC
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CCC, FCC(Class A)
Form Factor
2U
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum Power Supply
100-127Vac,12.9A,1000W
200-240Vac,9.5A, 1600W
Environment
Operation temperature: 10^oC- 35^oC/ Non operation temperature: -40^oC - 70^oC
Non operation humidity: 20% - 90% ( Non condensing)
Item Dimension (L inchxW inchxH inch)
44 x 24 x 11 Weight
98.77lb Warranty Information
3 Years with 1st year ARS
