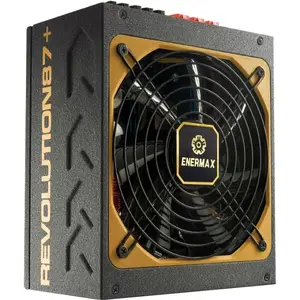

Enermax ERV1000EWT-G Power Supply ERV1000EWT-G REVOLUTION87 1000W ATX EPS12V Active PFC SATA Modular 87PLUS GOLD Retail

AC Input Voltage
115 240VAC, 50 60Hz Active PFC

AC Input Current
11 - 5A DC Output/Rated /Combined
+3.3V/24A/120W
+5V/24A/120W
12V1/30A/996W (83A)
12V2/30A/996W (83A)
12V3/30A/996W (83A)
12V4/30A/996W (83A)
-12V/0.5A/6W
+5Vsb/3A/15W Total Power
1000W

Peak Power
1100W

Protection Circuit
Over Current Protection-
DC Rail:OCP trigger range
3.3V:30 40A
5V:30 40A
12V:35 45A Over Voltage Protection
DC Rail:OVP trigger range
3.3V:3.7 4.1V
5V:5.7 6.5V
12V:13.1 14.5V

(DC) Under Voltage Protection
DC Rail:UVP trigger range
3.3V:2.0 2.4V
5V:3.3 3.7V
12V:8.5 9.5V Over Power Protection
Activated when output power > 120 -150% of rated max load.

Over Temperature Protection
Activated when PSU heat sink > 90 - 120oC. Short Circuit Protection
Activated when any DC rails short-circuited. Item Dimension (L"xW"xH"):
9.25 x 14.5 x 4.5

Weight:
9.00lb

Warranty Information:
5 Years
