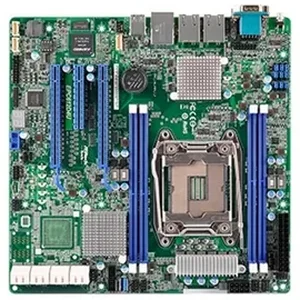

EPC612D4U - Asrock Motherboard EPC612D4U E5-1600/2600v3 LGA2011 R3 C612 DDR4 PCI-Express SATA UATX Retail

Form Factor
- UATX

Processor System
CPU- Intel Xeon processor E5-1600/2600 v3 series
Socket- Single Socket LGA 2011 R3
Chipset- Intel C612 System Memory
Capacity- 4 x 288-pin DDR4 DIMM slots

Type
- Quad Channel DDR4 memory technology
- Supports DDR4 2133/1866 RDIMM/LR DIMM/NV DIMM

Voltage- 1.2V Expansion Slot
PCIe 3.0 x 16- 2 slot (PCIE1: x16/x8 switch with PCIE2 PCIE3: x16/x8 (Analog switch with LSI3008))
PCIe 3.0 x 8- 1 slot (PCIE2: x0/x8)

Storage
SATA Controller- C612: 8 x SATA3 6Gb/s, support RAID 0, 1, 5, 10 Ethernet
Interface- 1000 /100 /10 Mbps

LAN Controller
- 2 x RJ45 by Intel i350
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI Management
BMC Controller- ASPEED AST2400
IPMI Dedicated LAN- 1 x Realtek RTL8211E for dedicated management GLAN

Features
- Watch Dog
- NMI

Graphics
Controller- ASPEED AST2400
VRAM- DDR3 16MB Rear Panel I/O
VGA Port- 1 x D-Sub
USB 2.0 Port- 2
USB 3.0 Port- 2

Lan Port- RJ45: 2 + 1 (IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)

Serial Port- 1 (COM1)
UID Button/UID LED- 1 Internal Connector
Auxiliary Panel Header- 1 (include chassis intrusion, location button and LED, front LAN LED)
TPM Header- 1
IPMB Header- 1
Fan Header- 1x CPU Fan, 5x system Fan (4-pin)
ATX Power- 1 (24-pin) + 1 (8-pin)
USB 3.0 Header- 1 ( support 2 USB 3.0)
USB 2.0 Header- 1 ( support 2 USB 2.0)
Type A USB 3.0 Port- 1
BMC_SMBUS- 2 System BIOS
BIOS Type- 64Mb AMI UEFI Legal BIOS

BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash Hardware Monitor
Temperature
- CPU Temperature Sensing
- System Temperature Sensing

Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control

Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS
OSMicrosoft Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)

Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)

Virtual
- VMWare ESXi 5.5 Item Dimension (L"xW"xH"):
9.6 x 9.6 x 1

Weight:
1.6 lb

Warranty Information:
1 Year
