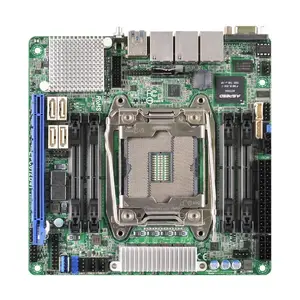

EPC612D4I - Asrock Rack EPC612D4I Mini-ITX Server Motherboard

Product Overview

The ASRock Rack EPC612D4I is a high-performance Mini-ITX server motherboard designed to meet the needs of professional server applications. It supports Intel's dual LGA2011-v3 processors and is equipped with the Intel C612 chipset.

Key Specifications:

• CPU Support: Dual LGA2011-v3 (Intel Xeon E5-1600/2600 v3 Series)
• Memory: 4 x DDR4 SODIMM slots, supporting 2133/1866/1600 MHz, Quad Channel, ECC
• Expansion Slots: 1 x PCI-Express 3.0 x16 slot
• SATA Ports: 4 x SATA3 ports with RAID support (0, 1, 5, 10)
• Graphics: Aspeed AST2400 with 16MB DDR3 video memory
• Networking: Dual Intel Gigabit Ethernet Controllers (i210 & i217LM) plus 1 Realtek RTL8211E for dedicated management
• USB Ports: 5 x USB 3.0 (including 1 Type A) and 2 x USB 2.0 ports
• Video Output: 1 x VGA port
• LAN Ports: 2 x RJ45 LAN ports and 1 x RJ45 dedicated IPMI LAN port
• Power Connectors: 1 x 24-pin ATX and 1 x 8-pin ATX
• Form Factor: Mini-ITX (6.7 x 6.7 inch / 17.02 x 17.02 cm)
