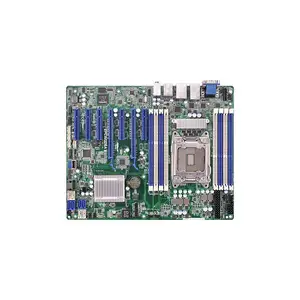

Asrock EPC602D8A Rack EPC602D8A ATX Server Motherboard with LGA2011

Specifications

• CPU: LGA2011
  • Supports Intel Xeon E5-1600/2600/4600 & v2 Series Processors
  • Supports Hyper-Threading Technology
• Chipset: Intel C602
• Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots, Quad Channel, Support up to 256GB REG/Load Reduced Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
• Slots: 2x PCI-Express 3.0 x16 Slots (runs at x16x0 or x8/x8), 4x PCI-Express 3.0 x8 Slots (runs at x0/x8, x0/x8, x8/x4, x0/x4), 1x PCI-Express 2.0 x8 Slot (runs at x2)
• SATA: 2x SATA3 Ports, Support RAID 0, 1, 5, 10; 4x SATA3 Ports, Support RAID 0,1,10, NCQ, AHCI, Hot Plug; 8x SATA2 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• Video: Aspeed AST2300 Graphics w/ 16MB DDR3 Video Memory
• LAN: 2x Intel i210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E for Dedicated Management GLAN
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port, 1x IEEE 1394 Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
