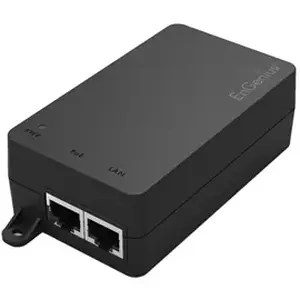

Product Overview
- The Passive 54v PoE Adapter includes two Gigabit Ethernet (10/100/1000 Mbps) ports; one port is used for connecting to a compatible PoE Switch and the other for connecting to a PoE-enabled device.- The Adapter can also serve to extend power between non-PoE Switches and network devices by connecting one port to a standard network Switch and the other to a PoE-enabled device up to 328-feet from the power source.- Sends up to 32W/54V/0.6A output power- With disconnect, short-circuit, and surge protection, valuable equipment is guarded from power surges or short-circuits associated with lightning strikes and electrostatic discharge- Includes mounting hardware for easy placement on walls, ceilings, or in structured wiring enclosures
Technical Specifications
Power
Input Voltage: 100 to 240V AC
Input Current: 0.8A Maximum for 100V AC
AC Input Frequency: 47 to 63 Hz
Maximum Output Power: 32.8W
Pin 4: 5.54V, Pin 7/8: Return Data
Compatible with 10/100/1000 Mbit/s Ethernet, full duplex Environment
Operating Temperature: 0 C to 40 C (32 F to 104 F)
Storage Temperature: -30 C to 80 C (-22 to 176 F)
Operating Humidity: 5 to 90% Under Non-Condensing Additional Features
Over Voltage and Over Current Protection
Short Circuit Protection Physical Interface
1 x 10/100/1000 Data input 1x10/100/1000 Data power output
1x IEC 320C6 AC connector LED Indicators
Power On: Green Mounting
Mounts to Walls (Anchors and Screws Included) Regulatory
IEC 60950-1: 2005 + A1
UL60950-1
EN55022:2010
EN55024:2010 FCC Part 15 Class B
AS/NZ60950-1 Item Dimension (L"xW"xH")
5.4 x 4.8 x 2
Weight
0.57 lb
Warranty Information
1 Year
