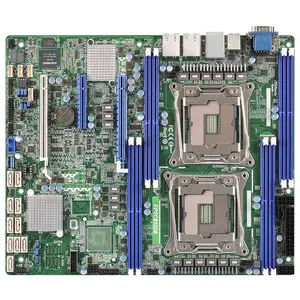

EP2C612D8 - Asrock Rack EP2C612D8 ATX Server Motherboard with Intel C612

Overview: The ASRock Rack EP2C612D8 is a high-performance dual LGA2011-v3 server motherboard designed for demanding applications and enterprise-level computing.

Specifications:

• CPU Support: Dual LGA2011-v3 supporting Intel Xeon E5-2600 / 4600 & v3 Series Processors
• Chipset: Intel C612
• Memory: 8x DDR4 DIMM slots with support for 2133/1866/1600 MHz, Quad Channel
• Expansion Slots: 2x PCI-Express 3.0 x16 slots, 1x PCI-Express 3.0 x8 slot
• SATA Connectors: 10x SATA3 ports
• Graphics: Aspeed AST2400 Graphics with 16MB DDR3 Video Memory
• Network: 2x Intel i350 Gigabit Ethernet Controllers; 1x Realtek RTL8211E for Dedicated Management GLAN
• USB Ports: 5x USB 3.0 ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 ports (2 rear, 2 via header)
• Other Ports: 1x VGA port, 1x Serial port, 2x RJ45 LAN ports, 1x RJ45 Dedicated IPMI LAN port
• Power Connectors: 1x 24pin ATX power connector, 2x 8pin ATX power connectors
• Form Factor: ATX, dimensions 12.0 x 10.0 inch / 30.5 x 25.4 cm
