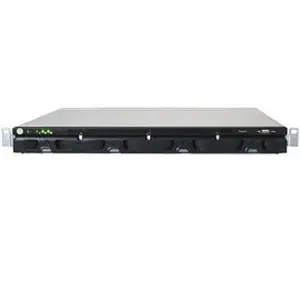

Infortrend EONNAS 1100R Network Attached Storage EONNAS 1100 1U Rackmount 2.13GHz 2GB 4x3.5inch SATA II SATA III

Specifications

• Mfr Part Number: EN1100MC-0032
• Hardware:
  • CPU: Intel Dual-Core 1.8GHz Processor
  • RAM: 4GB DDR3
  • HDD: 4x 3.5" SATAII/SATAIII Hard Disk Drives
  • LAN: 2x Gigabit LAN Ports
  • USB: 5x USB Ports (1 front, 4 rear)
  • eSATA: 1x eSATA Port
  • Fan: 2x 4cm SmartFans (12V DC)
  • AC Input Power Voltage: 100-240V, 3.5A w/ PFC (auto-switching)
  • Power Frequency: 47-63 Hz
• Software:
  • Protocols: CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS, iSCSI, SNMP, NDMP, NTP, ICAP
  • Client Operating System Support: Windows XP, Vista (32/64-bit), Windows 7 (32/64-bit), Windows Server 2003, Windows Server 2008 R2, Apple Mac OS X, Linux, Red Hat, SuSE
  • Server Virtualization: VMware vSphere, Citrix XenServer, Windows Server 2008 Hyper-V
  • File System: Internal - ZFS; External - FAT32, NTFS
  • Networking:
    • IPv6 support
    • Fixed or dynamic IP address
    • Dual Gigabit Ethernet w/ Jumbo Frame
    • Port trunking/NIC teaming/Link aggregation (IEEE 802.3ad)
    • DHCP Client
  • Security: HTTPS connection, Encrypted remote replication (rsync over 128-bit SSH), CHAP authentication for iSCSI volumes
  • RAID and Volume Management:
    • RAID 0/1/5/5 + Hot spare/6/6 + Hot spare/10
    • Online and automatic RAID capacity expansion
    • Deduplication (Inline, block-level)
    • Compression
    • Thin provisioning (iSCSI volumes only)
    • ICAP-based anti-virus support
  • Power Management: Wake on LAN, Network UPS with SNMP management
  • System Management:
    • Web-based GUI
    • HTTP/HTTPS connections
    • Email alerts
    • SNMP traps
    • System status monitoring
    • Exportable event logs
    • System settings backup and restore
    • Software live update
    • Disk roaming
    • Time synchronization with the NTP server
  • Data Protection:
    • ZFS End-to-End Data Integrity: Detects and automatically heals silent data corruption
    • Snapshot: No number limitation; For both shared folders and iSCSI volumes; Scheduling at intervals as short as 10 minutes; Automatic snapshot copy pruning based on user configured policy
    • Remote Replication: Rsync with 128-bit SSH encryption
    • Pool Mirror: Remote data mirroring; Real-time or scheduling; IPsec encryption
    • ICAP-based Anti-virus Support
  • File Server:
    • Protocols: CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS
    • Client Operating System: Windows, Mac OS, Linux
    • File/Folder Management by Web Browser
  • FTP Server: Max concurrent connection control, Max failed log-in attempt control
  • Backup Server:
    • Apple Time Machine support
    • Windows Backup and Recovery support
    • Bundled free licenses for FarStone TotalRecovery Pro 7 (4 licenses per system)
    • Backup to external storage devices via USB or eSATA connections
    • USB one-touch-copy (Import/Export)
    • Remote replication (Rsync with 128-bit SSH encryption)
• Power Supply: 250W Power Supply
• Form Factor: 1U Rackmount
• Dimensions (WxDxH): 439.0 x 511.0 x 43.0 mm
• Weight: 15.34 lbs / 6.96 kg (w/o HDD)
