Product Overview

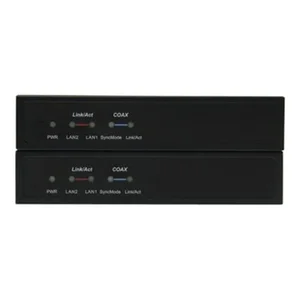

Startech.Com extend an ethernet network over coaxial cable up to 1.5 miles (2.4km) - ip to coextend an ethernet network over coaxial cable up to 1.5 miles (2.4km) - ip to coax converter - coax ethernet extender - ethernet over coaxial - ethernet over rg6 - gigabit ethernet over coax Manufacturer : Startech UPC : 065030848916- SKU: SY3442275
Technical Specifications
Hardware
Industry Standards:HCNA (ITU G.9954 HPNA 3.1)
IEEE 802.3ab 1000BASE-T
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX Connector(s)
Local Unit Connectors:
1 - RJ-45 Female
2 - Type F (RF Coax) Female
Remote Unit Connectors:
1 - RJ-45 Female
2 - Type F (RF Coax) Female Performance
Maximum Data Transfer Rate:
Up to 112Mbps at 2,952 ft (900 m)
Up to 64Mbps at 1.5 mi (2.4 km)
Speed/distance will vary depending on type/quality of line used (see manual for detailed chart) Max Transfer: Distance:2.4 km (1.5 mi)
Power Budget:0 dBm, 12-44MHz
MTBF:57,000 Hours
Color
Black Indicators
LED Indicators:
1 - Coax Link/Activity
1 - Coax Sync
1 - LAN Link/Activity
1 - Power Power
Power Consumption:< 4W
Power Adapter Included:Two
Input Voltage:110 - 240 AC
Output Voltage:12 DC
Output Current:1 A
Center Tip Polarity:Positive
Plug Type:M Included in Package
1 - Local Unit
1 - Remote Unit
2 - Universal Power Adapters (NA/EU/UK)
1 - User Manual Item Dimension (L"xW"xH"):
9.25 x 6.42 x 7.76
Weight:
3.42 lb
Warranty Information:
2 years
