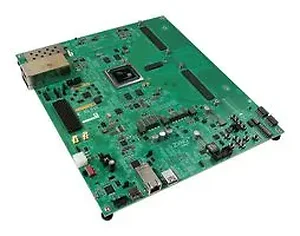

Amd EK-U1-ZCU208-V1-G Zynq UltraScale+ RFSoC ZCU208 Evaluation Kit

Remote PHY for Cable Access Early Warning Phased Array Radar / Digital Array Radar Satellite Communications 5G Wireless Test & Measurement All High Performance RF Applications Industry’s only single-chip adaptable radio platform Zynq UltraScale+ RFSoC XCZU48DR-2FSVG1517E silicon featured on the ZCU208 Evaluation board Integrated 8x 5GSPS ADC, 8x 10GSPS* DAC, 8x SD-FEC design example Lidless package for improved thermal dissipation *10GSPS is achieved using ZU48DR SCD5184 silicon Comes equipped with all board-level features needed for design development DDR4 Component – 4GB, 64-bit, 2666MT/s, attached to programmable logic (PL) DDR4 SODIMM – 4GB 64-bit, 2400MT/s, attached to the processing subsystem (PS) FPGA Mezzanine Card (FMC+) interface for I/O expansion, including 12x 33Gb/s GTY transceivers and 34 user-defined differential I/O signals Quad zSFP/zSFP+ cage assembly 8 user-I/O, single-color LEDs Includes reference design mezzanine cards to reduce development time CLK104 RF clock add-on card, showcasing internal reference clocking and external sampling clocking XM650 N79 band loopback add-on card allows simple out-of-box loopback and example reference layout for baluns XM655 breakout add-on card allows in-depth lab-based measurements including multi-tile synchronization (MTS)
